ViRAY : Line Array.

Compact 3-way Line Array System

ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Size Comparison
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Photo
ViRAY Size Comparison

Unique 8” coaxial mid/high planar wave driver, Dual 8" neodymium ultra low distortion cone drivers

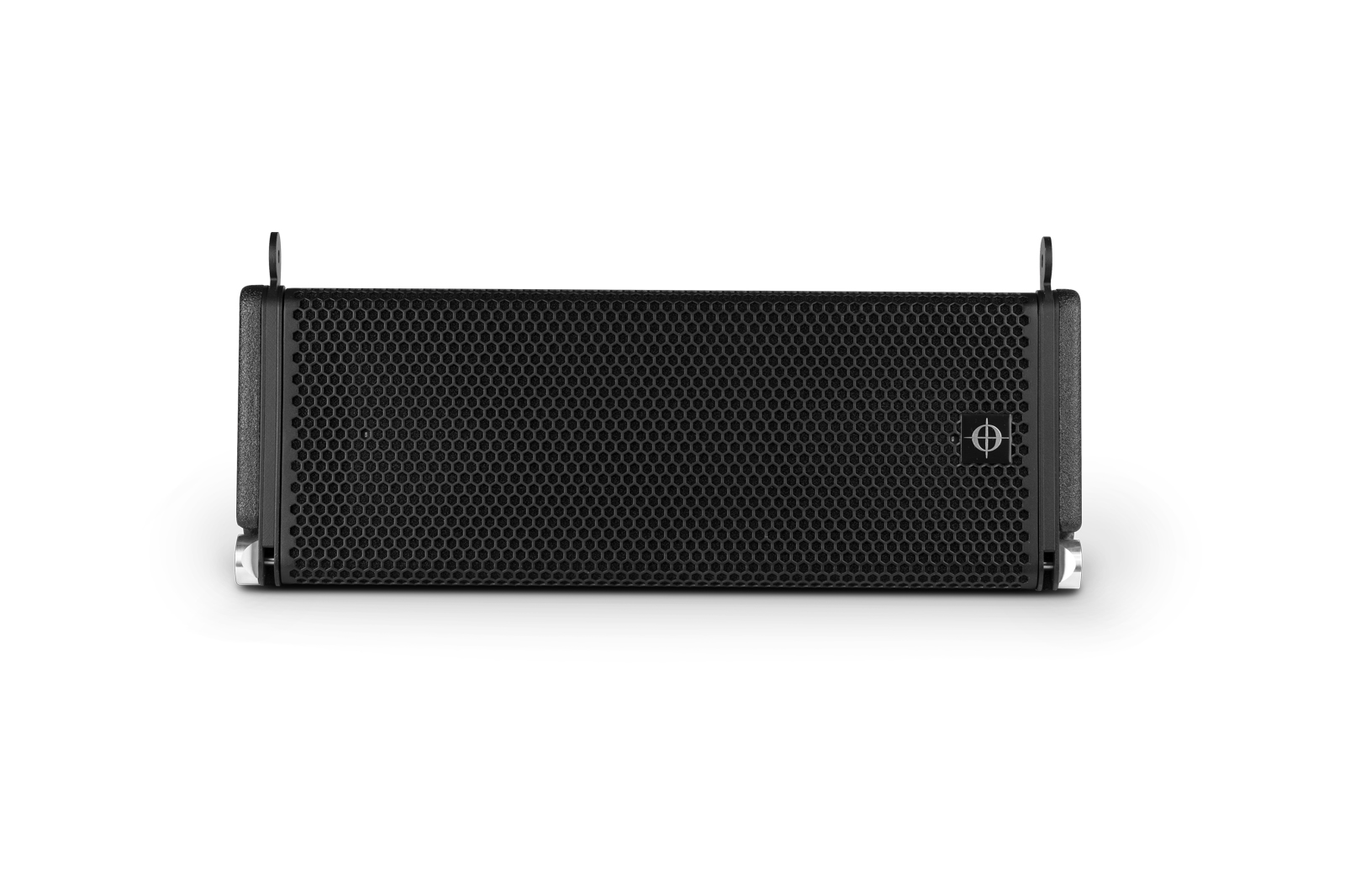

  • The ViRAY is a compact 3-way symmetrical line array module, designed for small to medium venues where high fidelity sound and outstanding intelligibility is required.


Main Features

  • Linear phase response
  • Frequency range: 600 55 Hz – 22 kHz (-6 dB)
  • High power handling: 600 W (AES)
  • Unique 8” coaxial mid/high planar wave driver
  • Dual 8″ neodymium ultra low distortion cone drivers
  • Variable horizontal coverage of 120° or 80° or 100° asymmetrical (40°+60°)
  • ViCOUPLER unites all transducers to perfom as a single source
  • Vertical curving 0° to 10° variable in 1° steps
  • Integrated rigging system for flown or ground stacked arrays
  • Rigging compatible with AiRAY, SC2-F and SCV-F
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

Aimed specifically at medium sized tours and fixed installation, ViRAY compact line array systems have been created to truly deliver the best possible audio quality, fulfilling the exacting needs of today’s global markets and surpass the expectations of both user and listener.

ViRAY systems incorporate CODA’s most advanced technologies; including the DDP-driver (Dual Diaphragm Planar-wave-driver), the unique ViCOUPLER and the award winning sensor controlled subwoofer technology. ViRAY is a fully integrated sound reinforcement system, which can be operated either in 1-way passive or 2-way bi-amp mode.

ViRAY compact line array systems consist of the ViRAY 3-way symmetrical line array module, the SCV-F sensor controlled 18” subwoofer and the dedicated LINUS amplifier racks.

ViRAY compact line array systems are perfectly suited for theatres, live sound performance venues, Clubs, Houses of Worship, Corporate events and Touring. The integrated rigging system allows quick and easy flying or ground stacking. Arrays may be created either straight or curved at various angles to obtain the desired vertical coverage.

The CODA Audio System Optimiser software allows you to calculate the perfect setup for every application.

For special applications and to further enhance the audio experience, ViRAY systems can be extended with the SCP sensor controlled double 18” subwoofer as a complementing tool.

System Solutions

ViRAY 8-2-4 Ground Stack

SYSTEM COMPONENTS



08x ViRAY

02x SC2-F

04x SCV-F

02x M-RACK

02x VGA

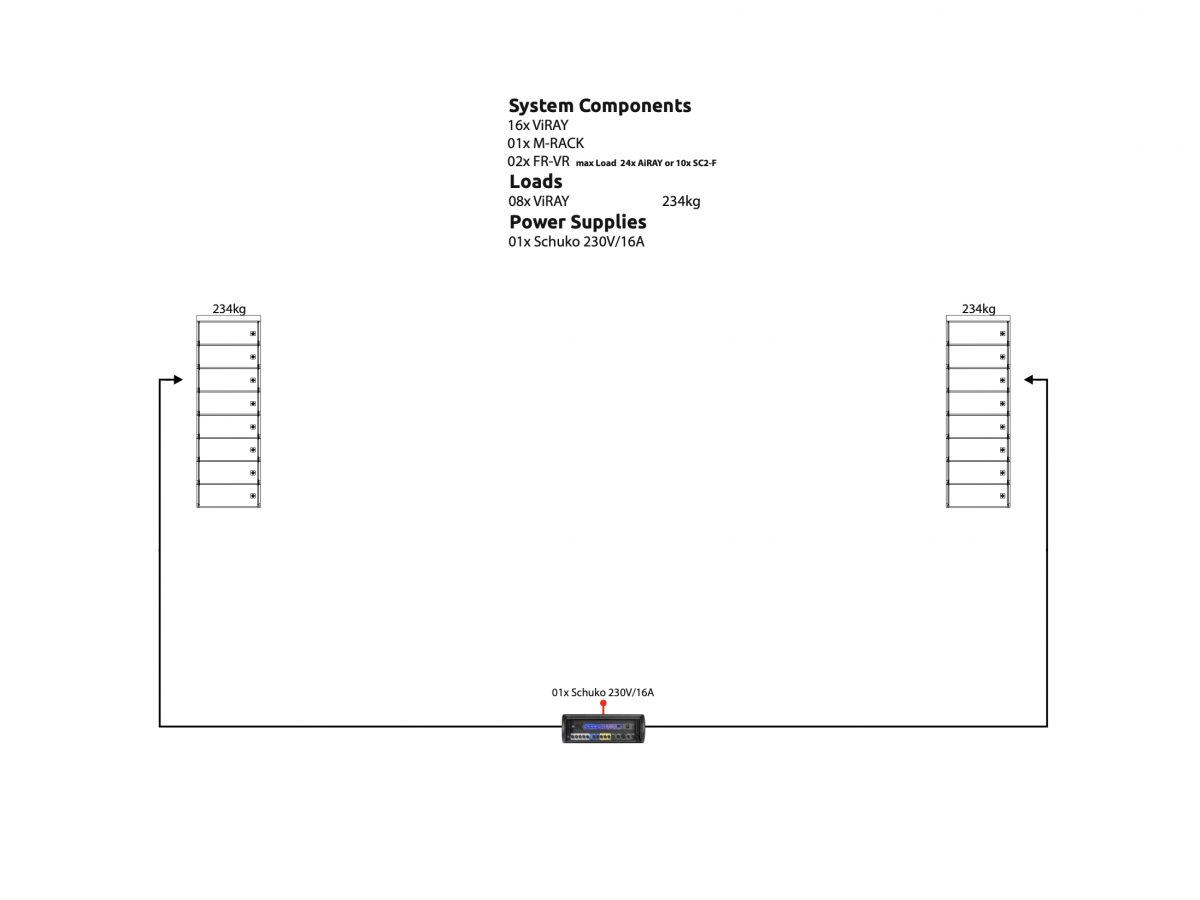

ViRAY 16-0-0

SYSTEM COMPONENTS



16x ViRAY

01x M-RACK

02x FR-AR Set

ViRAY 12-0-8

SYSTEM COMPONENTS



12x ViRAY

08x SCV-F

02x M-RACK

02x FR-AR Set

ViRAY 16-4-12

SYSTEM COMPONENTS



16x ViRAY

04x SC2-F

12x SCV-F

04x M-RACK

04x FR-AR Set

ViRAY 24-8-16

SYSTEM COMPONENTS



24x ViRAY

08x SC2-F

16x SCV-F

02x T-RACK

04x FR-AR Set

Rigging Examples

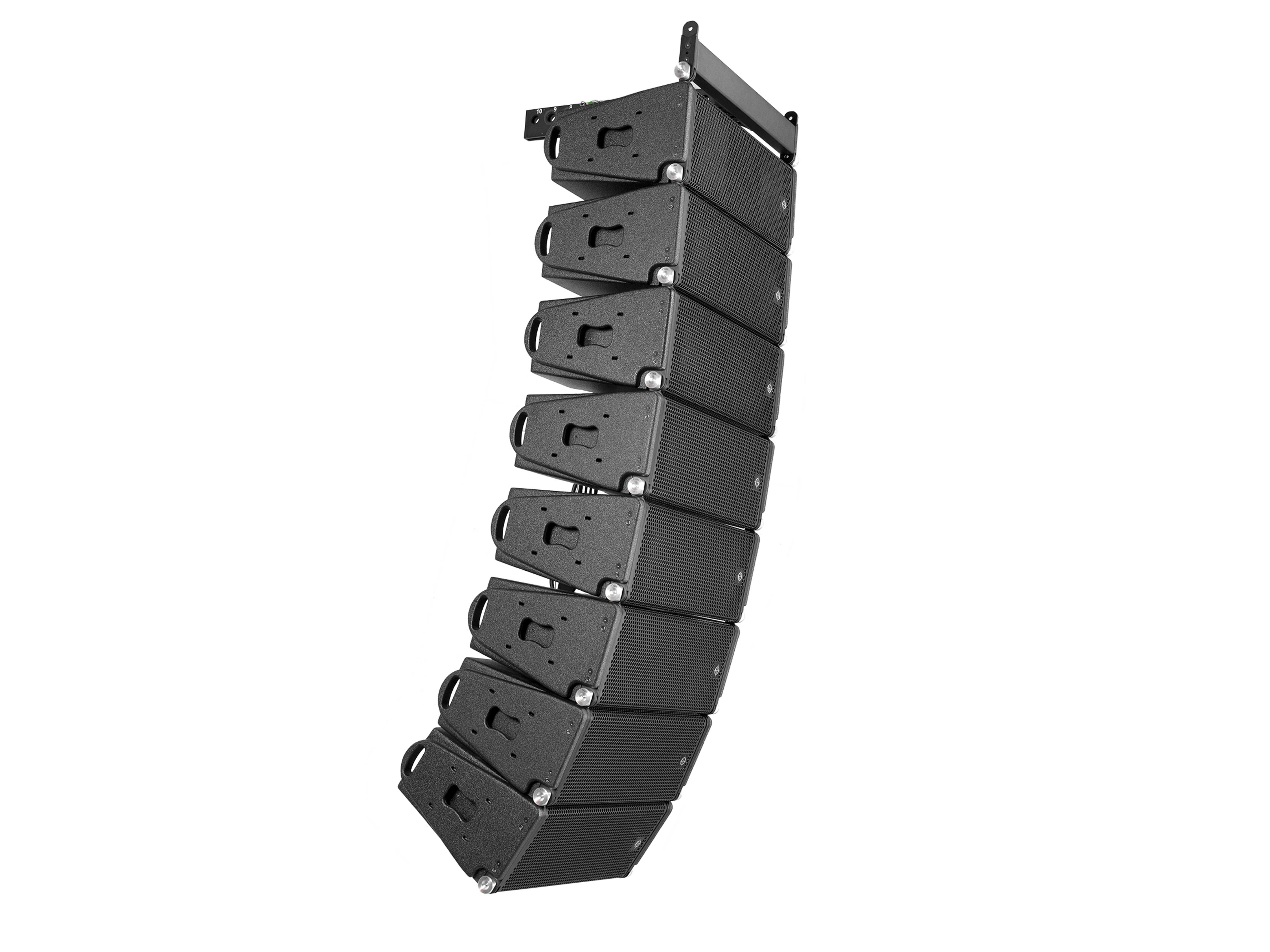

ViRAY Flown Arrays Example 1

  • 6x ViRAY
  • 3x SCF-V
  • 2x FR-VR

ViRAY Flown Arrays Example 2

  • 6x ViRAY
  • 3x SCF-V
  • 2x FR-VR

ViRAY Flown Arrays Example 3

  • 12x ViRAY;
  • 12x SCF-V
  • 3x FR-VR

ViRAY Flown Arrays Example 4

  • 6x ViRAY
  • 3x SCF-V
  • 2x FR-VR

ViRAY Flown Arrays Example 5

  • 10x ViRAY
  • 3x SCF-V
  • 3x FR-VR

Ground Stacked ViRAY Example 1

  • 6x ViRAY
  • 1x FR-VR
  • 4x TILT-VR

Ground Stacked ViRAY Example 2

  • 3x ViRAY
  • 3x SCF-V
  • 1x VGA

Ground Stacked ViRAY Example 3

  • 3x ViRAY
  • 3x SCF-V
  • 1x VGA-2

Specification

Type: Compact 3-way Bi-Amplified Line Array System
Application: Min. 1, max. 24 units line array
Frequency response: 55 Hz – 22 kHz (-6 dB)
Power handling AES / peak (passive):  600 W/ 2400 W
Low AES / peak: 600 W/ 2400 W
Mid AES / peak: 150 W/ 1300 W
High AES / peak: 80 W/ 400 W
Sensitivity low 1 W / 1 m: 99 dB
Sensitivity mid/high 1 W/1 m: 112 dB
Max. SPL peak low: 133 dB
Max. SPL peak mid/high: 142 dB
Amplification, cabinets per amplifier:
LINUS14D Optimum / Maximum: 8/12 (bi-amp) or 16/24 (passive)
LINUS10 Optimum / Maximum: 4/6 (bi-amp) or 8/12 (passive)
Dispersion horizontal: 120°, 80° or asymmetrical 100° (60° + 40° or 40° + 60°)
Dispersion vertical: Array dependent, 0°-10° in 1°-steps
Components:
Low frequency: 2x 8″ neodymium, water resistant cones 2″ (50.8 mm) voice coil, 300 W (AES) each
Mid/High frequency: 8″ coaxial DDP Planar-wave-driver
Mid: 3.5″ (90 mm) voice coil, 150 W (AES)
Hi: 1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point: 600 Hz passive or bi-amp (internal connector), 6300 Hz passive
Input connectors: 2x Neutrik™: 1x NL4MP + 1x Link cable NL4FX
Nominal impedance LF / MF+ HF: 16 Ohm (1+/1-) / 16 Ohm (2+/2-)
3-way passive: 16 Ohm (2+/2-)

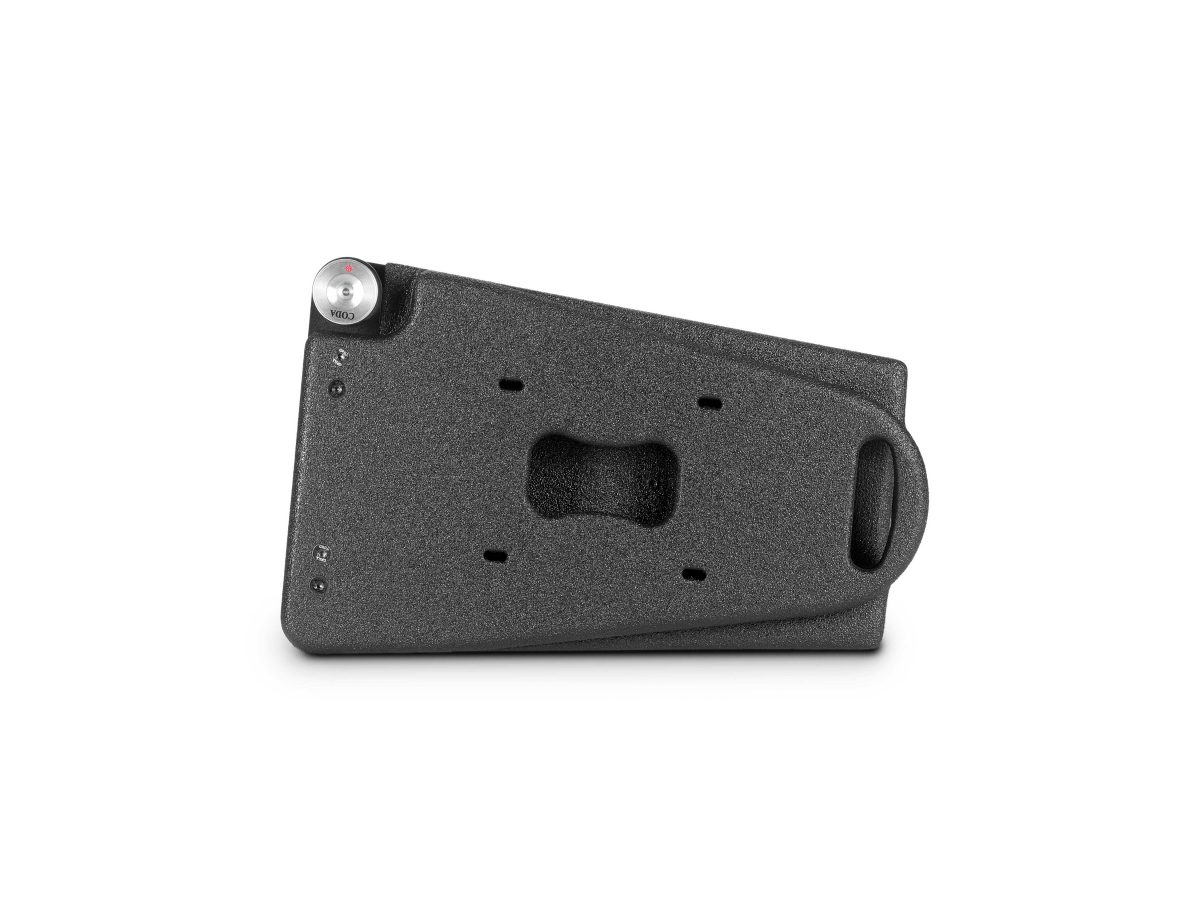

Enclosure shape: Horizontal trapezoid 2x 5°
Enclosure material: Birch plywood
Finish: Polyurea coating
Suspension: Flying hardware integrated
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (Amphenol connectors)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 674 x 242 x 385 mm / 26.54 x 9.53 x 15.16″
Net weight: 25.5 kg / 56.22 lbs
System Performance
Array Horizontal coverage Vertical coverage Peak output (+6 dB)
1xViRAY 120° or 80° 12° 133 dB
2x ViRAY 120° or 80° 0 – 10° adjustable 139 dB
4x ViRAY 120° or 80° 0 – 40° adjustable 145 dB
8x ViRAY 120° or 80° 0 – 80° adjustable 151 dB

* Measured with pink noice 6 dB crest factor. Half-space loading.

Accessories

  • FR-VR

    This post is also available in: Deutsch (German)

    Heavy duty frame for flying or ground stacking ViRAY and/or SCV-F

  • EXBAR-VR

    This post is also available in: Deutsch (German)

    Extension bar for FR-VR frame / SCV-F

  • TILT-VR

    This post is also available in: Deutsch (German)

    Tilting leg Set for ground stacking ViRAY / SCV-F on FR-VR

  • DOW-VR-12

    This post is also available in: Deutsch (German)

    Down fill frame for flying ViRAY under LA12

  • LP-VR

    This post is also available in: Deutsch (German)

    Laser plate for FR-VR frame

  • FRT-VR

    This post is also available in: Deutsch (German)

    Compact frame for flying ViRAY

  • SA-VR

    This post is also available in: Deutsch (German)

    Splay adapter for ViRAY
    Enables connection of ViRAY frames below ViRAY Systems

  • VGA

    This post is also available in: Deutsch (German)

    ViRAY / SCV-F ground stack adapter

  • VGA-2

    This post is also available in: Deutsch (German)

    ViRAY / SCV-F ground stack adapter

  • ViCOUPLER 80°

    This post is also available in: Deutsch (German)

    Horizontal coverage adaptor set

  • SH-VR

    This post is also available in: Deutsch (German)

    Shackle for FR-AR and FR-VR

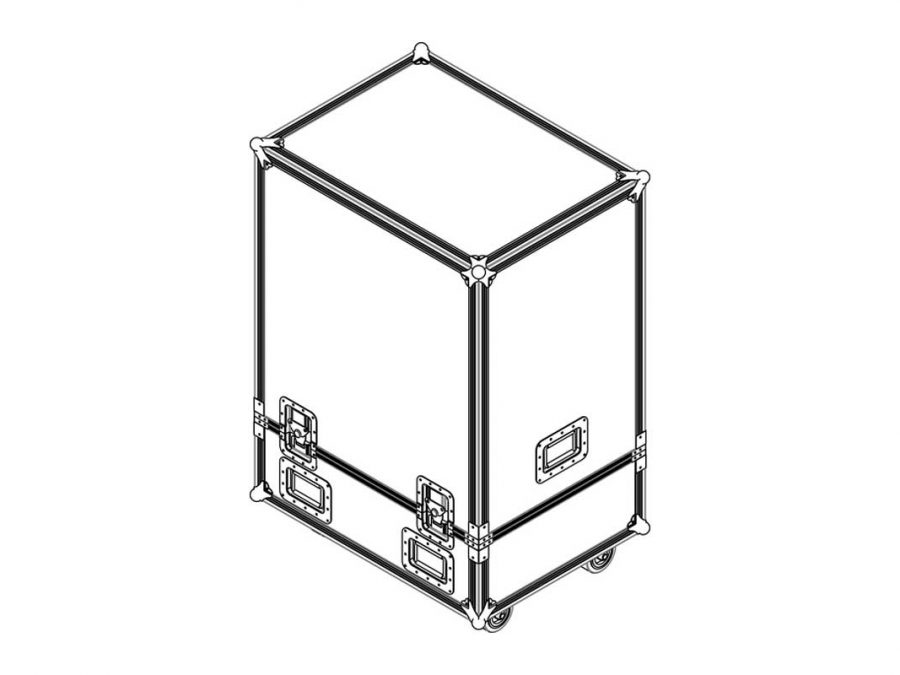

  • FC-VR

    This post is also available in: Deutsch (German)

    Flight case for up to 4x ViRAY

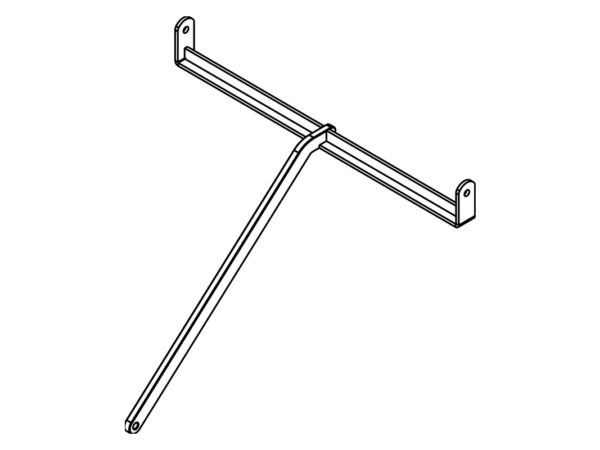

  • VR-LINK

    This post is also available in: Deutsch (German)

    Enables connection of up to 6 ViRAY with SC2-F or SCV-F

  • VR-AR-LINK

    This post is also available in: Deutsch (German)

    Enables rear connection of ViRAY below AiRAY

  • TARGET PLATE

    This post is also available in: Deutsch (German)

    Rigging accessory for line array frames

  • VARIO CLAMP

    This post is also available in: Deutsch (German)

    General truss clamp for AiRAY, ViRAY, N-RAY, TiRAY, APS, N-APS frames and extension bar

Downloads

FileAction
ViRAY DatasheetDownload
GLL file for EASE and EASE Foucs 3 (ViRAY, SCV-F)Download
Loading Capacity Calculation (ViRAY_SCV-F_SC2-F)Download
ViRAY CAD Drawing 2DDownload
ViRAY CAD Drawing 3DDownload
ViRAY Accessories - DrawingsDownload



CODA Audio Weather Protection Download
