- 12″ neodymium ultra low distortion woofer
- Extended frequency range: 38 Hz – 150 Hz (-6 dB)
- Power handling: 800 W (AES)
- Maximum SPL: 130 dB (peak)
- System impedance optimised for smaller LINUS Loudspeaker Management Amplifiers

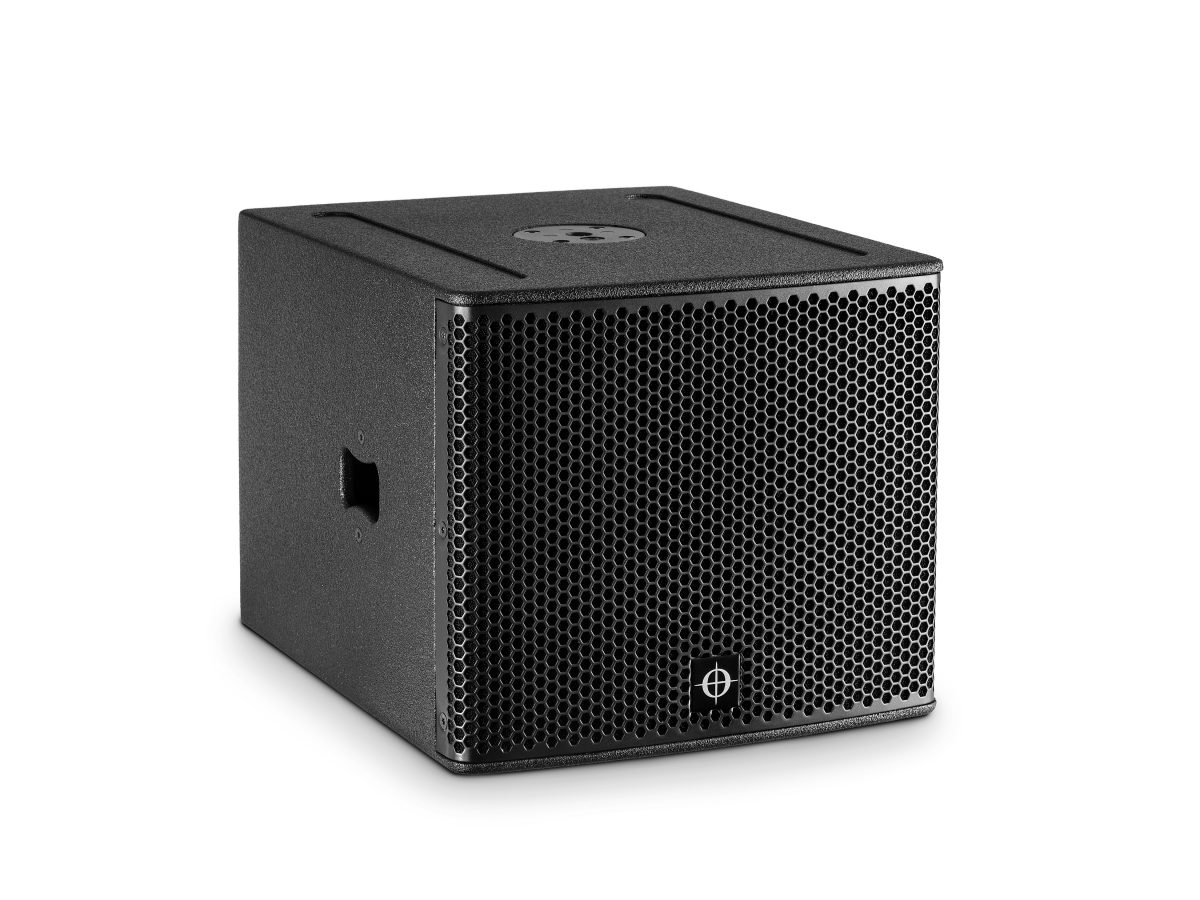

Ultra Compact 12" Multipurpose Subwoofer
This post is also available in:
Deutsch (German)
State-of-the-art drivers

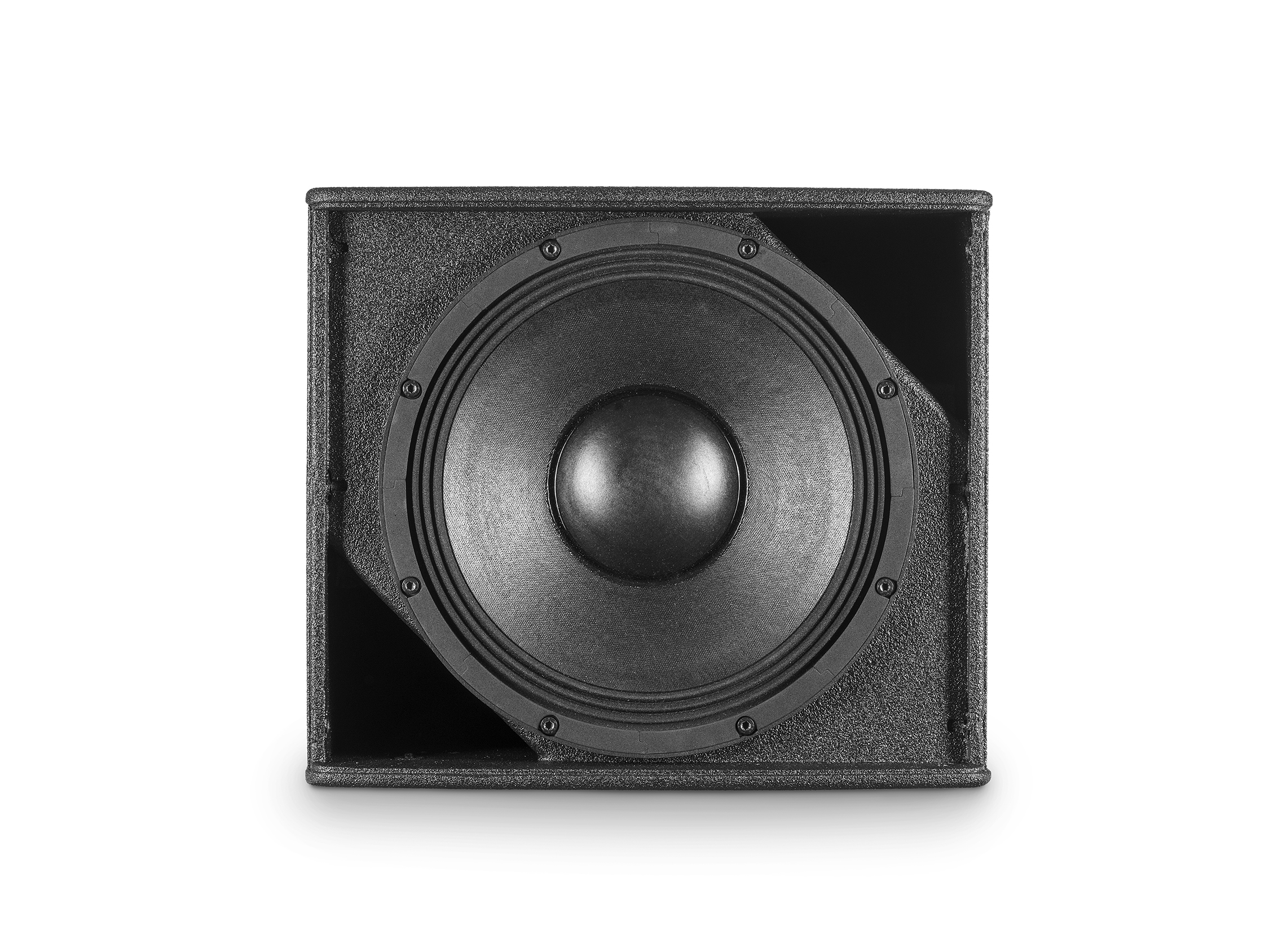

The U12-Sub is equipped with an extremely long excursion 12” neodymium ultra low distortion woofer. The neodymium motor delivers extreme high magnetic flux for increased efficiency. The 3” voice coil is 26 mm high, ensuring ultra linear excursion of 16 mm/pp at consistent magnetic force.
State-of-the-art carbon-fiber cone ensures maximum stiffness and low moving mass.
The aluminum shorting rings reduce intermodulation distortion, minimise induction variation while reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.
System solution
The U12-Sub is designed to work exclusively with CODA Audio LINUS amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostic. The integrated solution ensures optimal performance and protection.
Matching the Impedance of Speakers and Amplifiers
Although U12-Sub can work with all LINUS amplifiers, the 4 Ohm speaker impedance is optimised to draw more current from a smaller amplifier like LINUS12-C delivering uncompromised high output at reduced system cost.
Application
The U12-Sub is perfectly suited as a sub-extension for the HOPS, CoRAY and D-Series systems and can be used in variety of installation and mobile applications.
Typical applications are Houses of Worship, Theatres, Small clubs, Mobile DJs and live sound events.
| Type: | Ultra Compact 12″ Multipurpose Subwoofer |
|---|---|
| Application: | Small venues |
| Frequency response (-6 dB): | 38 Hz – 150 Hz |
| Power handling (AES/peak): | 800 W / 3200 W |
| Sensitivity 1 W / 1 m:* | 95 dB |
| Maximum output peak:* | 130 dB |
| Amplification, cabinets per amplifier: | |
| LINUS5-C Optimum / Maximum: | 4/8 |
| LINUS10-C Optimum / Maximum: | 4/8 |
| LINUS12C Optimum / Maximum: | 4/8 |
| LINUS14 Optimum / Maximum: | 4/8 |
| Components: | 12″ ultra low distortion woofer, 3″ (77 mm) voice coil, 800 W (AES) each |
| Nominal impedance: | 4 Ω (1+/1-) |
| Input connectors: | 2x Neutrik™ NL4MP |
| Suspension: | M6 + M20 threaded points |
| Enclosure material: | Birch plywood |
| Finish: | Polyurea coating |
| IP rating (IEC 60529): | IP54 |
| Weather protection options: | Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55 |
| Dimensions (WxHxD): | 404 x 350 x 493 mm / 15.91 x 13.78 x 19.41″ |
| Net weight: | 16 kg / 35.27 lbs |
*Measured with pink noise 6 dB Crest Factor. Half-space loading.
