D12 : Point Source.

Compact 2-way Coaxial System for Installations

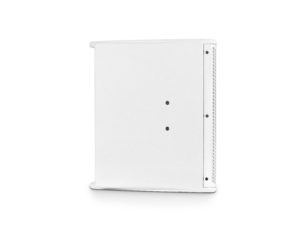

D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Size Comparison
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Photo
D12 Size Comparison

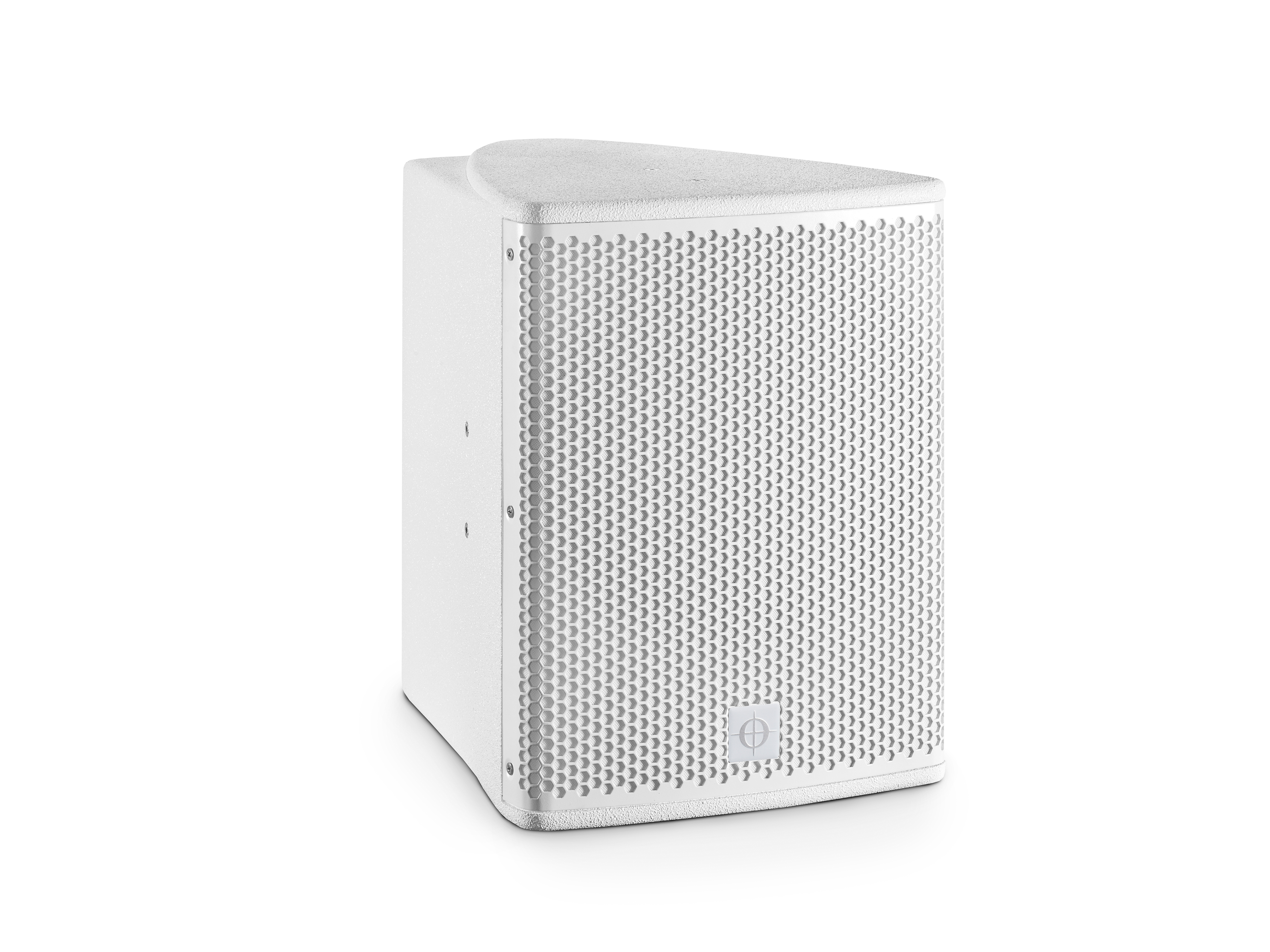

Compact 2-way coaxial system, 12"/1,75" coaxial loudspeaker in advanced design

  • The CODA D12 is a passive 2-way coaxial loudspeaker system designed without compromise to provide a true one point source in a compact package. The cabinet contains a high power 12” woofer and a coaxially mounted ring diaphragm high frequency driver with 44.4 mm voice coil.


Main Features

  • Compact 2-way coherent point source technology
  • Power handling: 57 Hz – 21 kHz (-6 dB)
  • 12” ultra low distortion driver with 3″ VC and triple demodulation rings
  • Coaxially mounted 1.75″ annular diaphragm superb quality HF driver
  • High power handling of 600 W (AES)
  • Symmetrical coverage of 90°
  • Superior sound quality
  • Optimised for near-field applications
  • High output before feedback
  • System integration with CODA DSP amplifiers
  • Integrated M6 flying points
  • Ball impact resistant (DIN 18032-3)
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

The CODA D12 is a passive 2-way coaxial loudspeaker system designed without compromise to provide a true one point source in a compact package. The cabinet contains a high power 12” woofer and a coaxially mounted high frequency ring diaphragm compression driver with a 1.75″ voice coil.

The advanced design aligns the acoustical centers of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.

Supported with a full range of mounting and flying accessories the D12 sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.

Advanced Driver Technology

At the heart of the D12 is the new developed 12”/1.75” coaxial driver. The 12” cone driver covers the 60 – 1300 Hz range with high efficiency and smooth, linear response. Three aluminium shorting rings reduce inter-modulation distortion; minimise induction variation while reducing thermal compression.
The coaxially mounted high frequency driver contains an ultra light 1.75” annular diaphragm providing exceptional transient response with very high efficiency from 1 kHz to 20 kHz.
This new transducer was engineered to radiate a single source, coherent 90° wave front for superior dispersion control and high fidelity sound.

System Solution

The D12 is designed to work exclusively with dedicated CODA Audio DSP amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostic. The integrated solution ensures optimal performance and protection.

Options

Additional colours and weather protection options are available.

Applications

Supported with a full range of mounting and flying accessories the D12 sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.



System Solutions

NO. 1: 8x D12

SYSTEM COMPONENTS:

8x D12
1x LINUS5-C / LINUS10-C

NO. 2: 4x D12 + 2x G15-SUB

SYSTEM COMPONENTS:

4x D12
2x G15-Sub
1x LINUS5-C / LINUS10-C

Specification

Type: Compact Passive 2-way Coaxial System for Installations
Application: Superior quality near field applications
Frequency response: 57 Hz – 21 kHz (-6 dB)
Power handling AES: 600 W
Peak power: 2400 W
Sensitivity: 98 dB*
Max. SPL peak: 132 dB**
Dispersion: 90° conical
Components:
Low frequency: 12″ woofer, 3″ (77mm) VC, 600 W (AES)
Mid/High frequency: Annular diaphragm compression driver, 1.75″ (44.4 mm) VC, 80 W (AES)
Crossover: 1.2 kHz passive
Nominal impedance: 4 Ω
Cabinets per amp channel: 1***
Input connectors: 2x Neutrik™ NL4MP
Suspension: 10x M6 threaded points
Enclosure material: Birch plywood
Finish: Polyurea black coating
IP rating (IEC 60529) IP54
Weather protection options: Standard IP55: IP55 (direct cable)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 342 x 452 x 425 mm /  13.46 x 17.8 x 16.73″
Net weight: 19 kg / 41.89 lbs

* Half-space loading.

** Measured with pink noise 6 dB crest factor.

*** In low SPL applications up to 2 x D12 per channel can be connected.

Accessories

  • CUD12V

    This post is also available in: Deutsch (German)

    Vertical u-bracket for D12

  • CUD12H

    This post is also available in: Deutsch (German)

    Horizontal u-bracket D12

  • AK2D

    This post is also available in: Deutsch (German)

    Array kit for 2 x D12 / D20

  • 24481

    This post is also available in: Deutsch (German)

    Wall Mount for CoRAY / CoRAY4L Twin, fixed on CA4 / 1x CoRAY4i or CoRAY4i twin, fixed on CA4i / G515-Pro / G512-Pro / G715-Pro / G712-Pro / D12 / D20

  • M6 RING

    This post is also available in: Deutsch (German)

    For rigging G308 / G308-Pro / G515-Pro / G512-Pro / G715-Pro / D8 / D12 / D20

Downloads

FileAction
D12 DatasheetDownload
D12 CAD Drawing 2DDownload
D12 CAD Drawing 3DDownload
D12 Accessoires - DrawingsDownload
D12 GLL file for EASEDownload
CODA Audio Weather Protection Download
