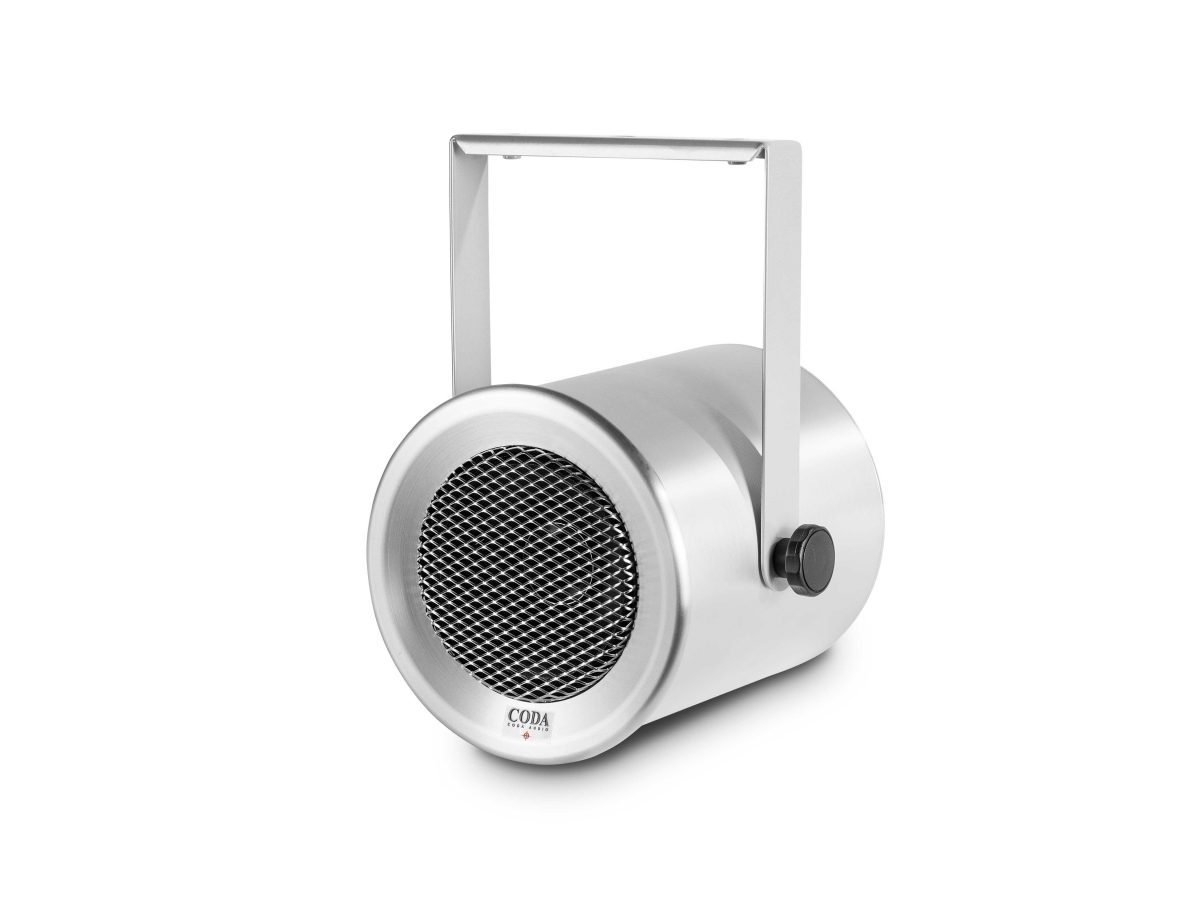

D5-Ceiling Photo

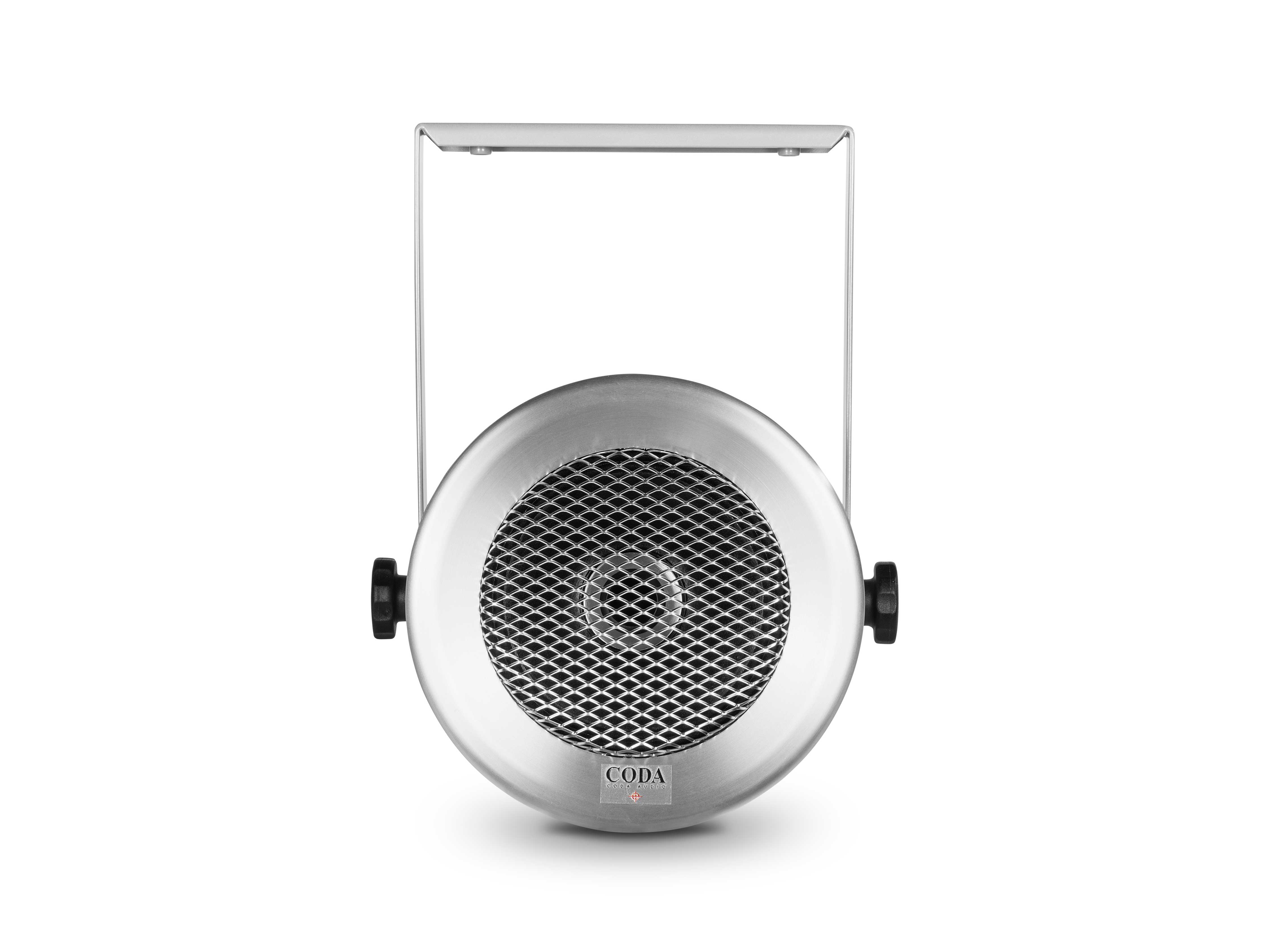

D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Size Comparison
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Photo
D5-Ceiling Size Comparison

Ultra compact 2-way coaxial system, 5"/1" coaxial loudspeaker, attractive solid aluminium design for ceiling installations.

  • The CODA D5-Ceiling is a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package.


Main Features

  • Ultra compact 2-way coaxial system
  • Power handling: 125 W (AES)
  • 5″/1″ coaxial loudspeaker
  • Attractive solid aluminum design
  • Single point source system providing coherent wave front
  • Superb quality sound
  • Impedance 16 Ohm for easy daisy chaining
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

The CODA D5-Ceiling is a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package.

The aluminum cabinet contains a high power 5” woofer and a coaxially mounted high frequency ring diaphragm compression driver with 1.75″ voice coil.  The advanced design aligns the acoustical centres of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.

Supported with a full range of mounting and flying accessories the D5-Ceiling sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications. Two M6 threaded points, the included U-Bracket and the additional M8 threaded point at the backside of the cabinet allow various fixing possibilities. The solid aluminium enclosure delivers elegant design and durability.

Combined with the U12-Sub low frequency extension for mobile applications, or U12i-Sub for fixed installations, the frequency response is extended down to 40 Hz.

D5-Ceiling has been designed to work exclusively with CODA Audio LINUS Loudspeaker Management Amplifiers as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.

System Solutions

NO. 1: 32x D5

SYSTEM COMPONENTS:

32x D5-Cube or D5-Tube or D5-Ceiling
1x LINUS5-C / LINUS10-C

NO. 2: 16x D5 + 8x PW12

SYSTEM COMPONENTS:

16x D5-Cube or D5-Tube or D5-Ceiling
8x PW12
1x LINUS5-C / LINUS10-C

Specification

Type: Ultra Compact 2-way Coaxial System for Installations
Application: Superior quality short throw
Frequency response: 90 Hz – 21 kHz (-6 dB)
Power handling AES: 125 W
Program power: 250 W
Peak power: 500 W
Sensitivity: 91 dB
Max. SPL peak: 117 dB
Dispersion: 90° conical
Components:
Low frequency: 5″ woofer,
1.5″ (38 mm) voice coil, 120 W (AES)
High frequency: 1″ coaxially mounted driver,
1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point: 1600 Hz passive
Nominal impedance: 16 Ω
100 V version (optional): 100 VA
Input connectors: 2 x Neutrik™ NL4MP
Enclosure material: Solid aluminum
Finish: Metal (all RAL-colours optional available)
Weatherproof version: Optional
Flying hardware: 2xM6, M8 Thread
IP rating (IEC 60529): IP13
Weather protection options: MG1 (Marine Grade 1): IP56
Dimensions (WxHxD): D5-Ceiling: 170 x 193 mm / 6.69 x 7.6″
Ceiling cut out:  ø 160 mm /  ø 6.3”
Net weight: 4 kg / 8.82 lbs

* Measured with pink noice 6 dB crest factor. Half-space loading.

Accessories

  • CUV200

    This post is also available in: Deutsch (German)

    Vertical u-bracket for D5-TUBE

Downloads

FileAction
D5-Ceiling DatasheetDownload
D5-Ceiling CAD Drawing 2DDownload
D5-Ceiling CAD Drawing 3DDownload
D5-Ceiling EASE DataDownload
CODA Audio Weather Protection Download
