N-RAY : Line Array.

Ultra Compact 3-way Line Array System

N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Size Comparison
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Photo
N-RAY Size Comparison

Big Things - Small Packages. N-RAY delivers high-fidelity sound with a large dynamic range and extended low frequency.

  • N-RAY is an ultra compact, 3-way line array that brings the benefits of the AiRAY technology into a shallow, lightweight cabinet for theatres, performing arts centres, and corporate events.


Main Features

  • Light weight of 15 kg
  • Frequency range: 60 Hz – 22 kHz (-6 dB)
  • High power handling: 1000 W (AES2)
  • Patented 6” DDP generates a unified wavefront and operates at a very high efficiency with extremely low distortion
  • Dual 6.5” neodymium ultra low distortion cone drivers
  • Dynamic Airflow Cooling (DAC) ensures exceptionally high sound pressure and low power compression
  • Variable horizontal coverage of 90°, 120°, or asymmetric 105°
  • Variable vertical curving in 1° steps
  • Instafit Magnetic Coupler sums the energy from all transducers to perform as a single source
  • Quick Release Grille – no tools required
  • Acoustically compatible with AiRAY or ViRAY systems
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

N-RAY Uncovered

N-RAY is an ultra compact, 3-way line array that brings the benefits of the AiRAY technology into a shallow, lightweight cabinet for theatres, performing arts centres, and corporate events.

Incorporating the latest in driver and system design technology, this Next Generation product boasts twice the power handling of other systems, significantly increasing low frequency output and long term SPL capability. N-RAY delivers high-fidelity sound with a large dynamic range and extended low frequency, as well as incredible flexibility thanks to its variable horizontal dispersion. The speaker is ideally suited for a variety of small to medium size applications.

N-RAY is compact, lightweight, and delivers a crystal clarity unrivalled by other speakers of this size. CODA’s technological innovations mean the speaker is convenient and portable as well as sustainable, meaning less pollution, lower costs, and far less energy consumption. A friend of the earth, and a friend of the audiophile.

Dynamic Airflow Cooling (DAC).

Putting that immense amount of power into a compact enclosure required a new enclosure design and a new thermal concept. The N-RAY front baffle and vents are made of aluminium with all drivers mounted into it. The aluminium vents are optimised to maximise airflow increasing the thermal capacity of the system. Applying more power increases the airflow in the vents, conducting more heat away from the drivers and distributing that heat outside the enclosure. The patented DAC technology dramatically improves heat dissipation, doubling the power handling and the maximum sound pressure of the system.

Dual Diaphragm Planar Wave Driver (DDP) and Low Frequency Drivers

The system contains two 6.5″ ultra low distortion neodymium drivers and a patented 6″ DDP driver, while the SCN-F 15″ sensor controlled low frequency extension provides additional headroom with exceptional dynamic range and tight punch.

Phase Linearity.

Offering a phase linearity similar to AiRAY, a 60 Hz – 22 kHz (-6 dB) frequency range and high power handling of 1000 W, N-RAY outputs a power, frequency and transient response that belies its small size.

System Solution.

N-RAY has a variable horizontal coverage of 90°, 120° or asymmetric 105°, variable vertical curving in 1° steps, and features an integrated three-point rigging system for flown or ground stacked arrays compatible with SCN-F – 15″ sensor controlled low frequency extension.

The line array facilitates system integration with LINUS loudspeaker management amplifiers. The N-RAY is equipped, as standard, with outdoor weather protection, making it sustainable for outdoor use, utilising a hybrid wooden and aluminium enclosure with polyurea coating to ensure rugged durability and exceptional water protection.

System Solutions

N-RAY 8-8 Ground Stack

N-RAY 12-0-0

N-RAY 12-4-4

N-RAY 18-4-8

N-RAY 24-8-8

Rigging Examples

N-RAY Rigging Example 1

  • 6x N-RAY

N-RAY Rigging Example 2

  • 2x SCN-F
  • 6x N-RAY

N-RAY Rigging Example 3

  • 4x SCN-F
  • 12x N-RAY

N-RAY Rigging Example 4

  • 4x SCN-F
  • 12x N-RAY

N-RAY Rigging Example 5

  • 3x N-RAY
  • 1x SCN-F
  • 6x N-RAY

N-RAY Rigging Groundstack Example 6

  • 3x SCN-F
  • 3x N-RAY

Specification



Type: Ultra compact 3-way line array system
Frequency response: 60 Hz – 22 kHz (-6 dB)
Power handling AES2 / peak: 1000 W / 4000 W
Max. peak SPL (with LINUS14):* 143 dB (A)
Amplification, cabinets per Amplifier
LINUS12C Optimum / Maximum: 12/16
LINUS14 Optimum / Maximum: 12/16
Dispersion horizontal: 90°, 120° or asymmetrical 105°
Dispersion vertical: Array dependent: 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, 10°, 12° in 1° steps
Components Low frequency: 2x 6.5″ neodymium, water resistant cones, 2″ (50.8 mm) voice coil, 500 W (AES) each
Components Mid/High frequency: 6″ DDP (Dual Diaphragm Planar-wave-driver)
Mid: 3.5″ (90 mm) voice coil, 150 W (AES) each
High: 1.75″ (44.4 mm) voice coil, 80 W (AES) each
Crossover point: 500 Hz / 6300 Hz passive
Input connectors: 2x Neutrik™: 1x NL4MP + 1x Link cable NL4FX
Nominal impedance LF / MF+HF: 12 Ω (2+/2-)
Enclosure material: Hybrid Multiplex / Aluminium
Suspension Integrated
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (Amphenol connectors)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 518 x 192 x 390 mm / 20.39 x 7.56 x 15.35″
(518 x 227 x 390 mm / 20.39 x 8.94 x 15.35″ incl. hardware)
Net weight: 15 kg / 33.07 lbs

*Measured with pink noise 12 dB Crest Factor (A-weighted).

Accessories

  • FR-NR

    This post is also available in: Deutsch (German)

    Frame for flying or ground stacking N-RAY and SCN-F, incl. EXBAR-NR, NADS, shackles

  • SA-NR

    This post is also available in: Deutsch (German)

    Splay adapter for N-RAY.
    Enables connection of N-RAY frames below N-RAY Systems

  • FRT-NRi

    This post is also available in: Deutsch (German)

    Installation frame for N-RAY, incl. shackles (WLL 400 kg)

  • EXBAR-Ni

    This post is also available in: Deutsch (German)

    Extension bar for FRT-NRi

  • NR-LINK

    This post is also available in: Deutsch (German)

    Rear connection adapter for flying 9 x N-RAY below SCN-F

  • CU-NR

    This post is also available in: Deutsch (German)

    Compact flying and stacking adapter for up to 3x stacked (in combination with CUTi-SF v2) or 6x flown N-RAY

  • CUTi-SF v2

    This post is also available in: Deutsch (German)

    CUTi-SF v2: Standfitting adapter for CUTi and for CU-NR

  • CO-N-RAY

    This post is also available in: Deutsch (German)

    Protection cover for 6 x N-RAY

  • NGA

    This post is also available in: Deutsch (German)

    Ground stacking adapter for N-RAY

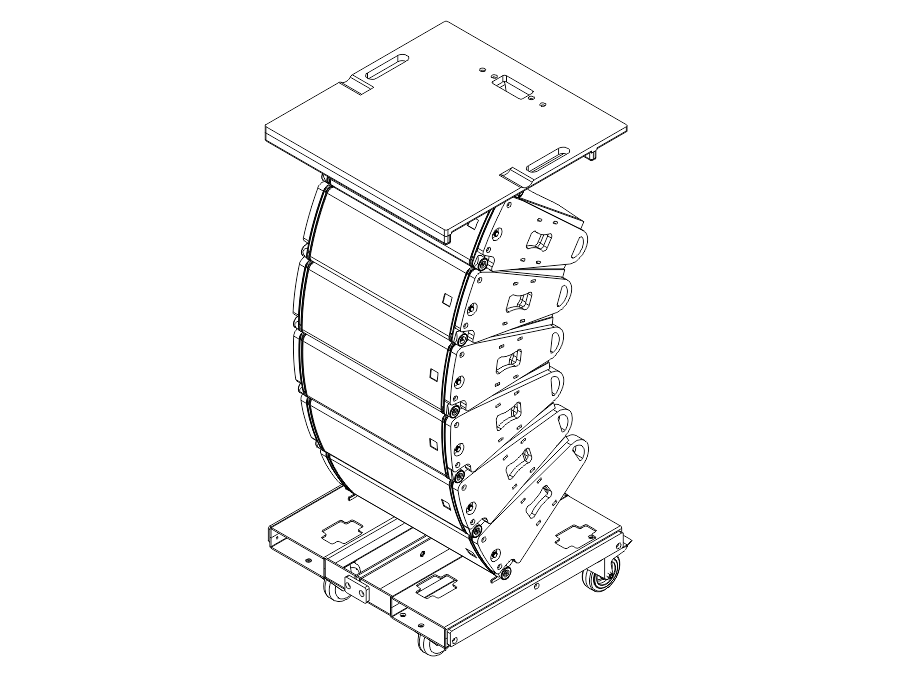

  • DOT-NR

    This post is also available in: Deutsch (German)

    Transport dolly for 6 x N-RAY, incl. transportation lid

  • VARIO CLAMP

    This post is also available in: Deutsch (German)

    General truss clamp for AiRAY, ViRAY, N-RAY, TiRAY, APS, N-APS frames and extension bar

  • NR-COUPLER 120

    This post is also available in: Deutsch (German)

    120° wave guide coupler set for N-RAY

  • CAH-SCP-Y

    This post is also available in: Deutsch (German)

    Hybrid speaker and sensor cable splitter

  • CAH-SCP-EX-10

    This post is also available in: Deutsch (German)

    Hybrid speaker and sensor cable extension 10 m

Downloads

FileAction
N-RAY Data Sheet (English)Download
N-RAY Datenblatt (Deutsch)Download
N-RAY GLL filesDownload
Loading Capacity Calculation (N-RAY, SCN-F)Download
N-RAY CAD Drawing 2DDownload
N-RAY CAD Drawing 3DDownload
Accessories N-RAY - DrawingsDownload
CODA Audio Rigging Systems maintenance N-RAY and SCN-FDownload



CODA Audio Weather Protection Download
