CUE TWO : Stage Monitor.

Compact 3-way Stage Monitor

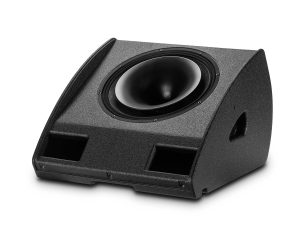

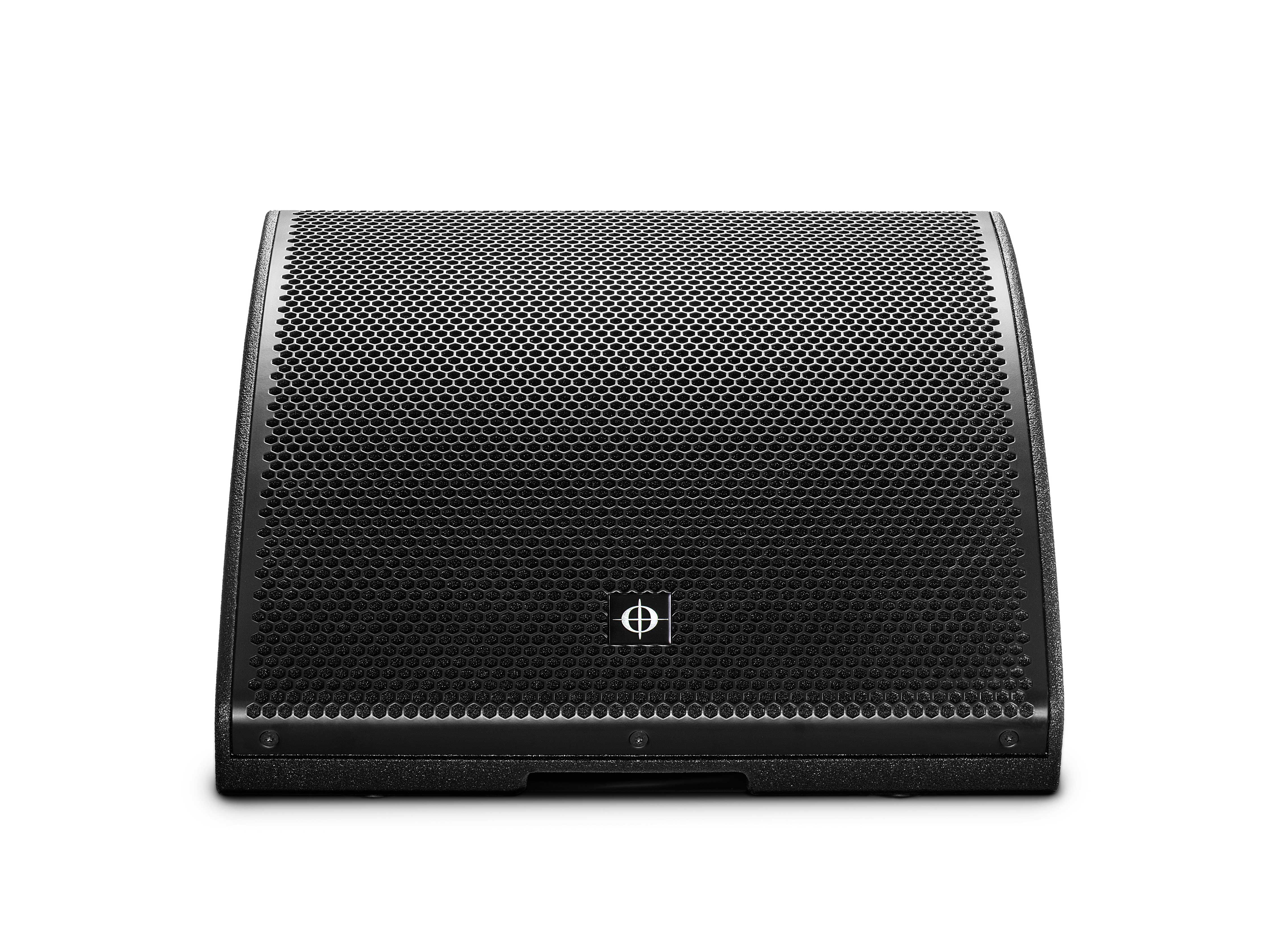

CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo

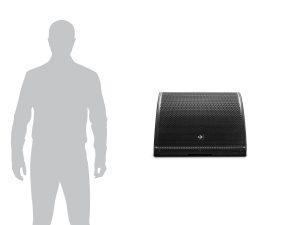

CUE TWO Size Comparison
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Photo
CUE TWO Size Comparison

3-way coherent point source technology, 15” / 1.4” triaxial transducer, 60° x 90° elliptical waveguide

  • The cabinet contains a triaxial transducer incorporating an extremely high power 15” neodymium cone driver and a 1.4” coaxial compression driver concentrically mounted to the woofer and loaded by a 60° x 90° elliptical waveguide.
    This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity ensures uniform coverage with perfect time alignment between the components.


Main Features

  • 3-way coherent point source technology
  • Frequency range: 50 Hz – 22 kHz (-6 dB)
  • Power handling: 1000 W (AES)
  • 15” / 1.4” triaxial transducer
  • 60° x 90° elliptical waveguide
  • High output before feedback
  • Integrated feet for additional 5° tilt
  • Powerful low frequency response
  • Mechanically durabile
  • Discrete cables connection
  • Passive or bi-amp operation
  • Light weight
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

The CUE TWO is a compact 3-way, coherent monitor built for the stage. It’s a super-high power box thanks to its 15″ neodymium cone driver and 1.4″ coaxial compression driver concentrically mounted to the woofer, loaded by a 60° x 90° elliptical waveguide.

As an artist, what you’re looking for out of a stage monitor is volume, clarity, and feel, and the technology in this box provides all of this and more, mainly thanks to its powerful neodymium woofers and compression driver: feedback is extremely minimal, integrated hardware provides increased dispersion, and the low end frequency response is immense.

The 15” high power neodymium driver is highly efficient and delivers controlled low frequency reproduction down to 50 Hz (-6 dB).  When combined with a 1.4” coaxial ring diaphragm compression driver it provides a true triaxial point source.  This unique technology with the elliptical 60° x 90° waveguide reproduces a coherent wavefront without hotspots. The precise directivity ensures uniform coverage with perfect time alignment between the components.

The reduction in physical size as well as its elegant cable connection at the bottom of the cabinet make the CUE TWO particularly useful not only on stage but also in applications where visual restrictions in placement play their part. Thanks to the integrated feet, the dispersion angle can be increased by 5 degrees.

M6 threaded points complete the possibilities with optional accessories and allow placement in specific applications such as TV studios, theatres, cinemas, etc.

CUE TWO has been designed to work exclusively with CODA Audio LINUS Loudspeaker Management Amplifiers as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.

System Solutions

NO. 1: 4x CUE TWO PASSIVE

SYSTEM COMPONENTS:

4x CUE TWO
1x LINUS10-C

NO. 2: 4x CUE TWO BI-AMP

SYSTEM COMPONENTS:

4x CUE TWO
1x LINUS10-C

Specification

Type: Compact 3-way Stage Monitor
Application: Stage monitor
Frequency response: 50 Hz – 22 kHz (- 6 dB)
Power handling AES: 1000 W
Peak Power: 4000 W
Sensitivity:* 103 dB
Max. SPL peak: 143 dB
Amplification, Cabinets per Amplifier:
LINUS5-C Optimum / Maximum: 2/2 bi-amp or 4/4 passive
LINUS10-C Optimum / Maximum: 2/4 bi-amp or 4/8 passive
LINUS14D Optimum / Maximum: 2/8 bi-amp or 4/16 passive
LINUS10 Optimum / Maximum: 1/4 bi-amp or 2/8 passive
Dispersion:
Horizontal: 60°
Vertical: 90°
Components:
Low frequency: 15″ neodymium woofer 4″ (101.6 mm) voice coil, 1000 W (AES)
High frequency: 1.4″ neodymium coaxial driver 3.5″ (90 mm) + 1.75″ (44.4 mm) voice coil, 150 W + 80 W
Crossover: 750 Hz passive or bi-amp (internal connector), 6.3 kHz passive
Nominal impedance: 8 Ohm (1+/1-) / 8 Ohm (2+/2-)
3-way passive: 8 Ohm (1+/1-)
Input connectors: 2x Neutrik NL4MP
Suspension: M6 fixing points
Enclosure material: Birch plywood
Finish: Polyurea coating (water resistant)
Dimensions (WxHxD): 540 x 379 x 574 mm / 21.26 x 14.92 x 22.6″
Net weight: 29 kg / 63.93 lbs
Weatherproof version: Optional

* Measured with pink noice 6 dB crest factor. Half-space loading.

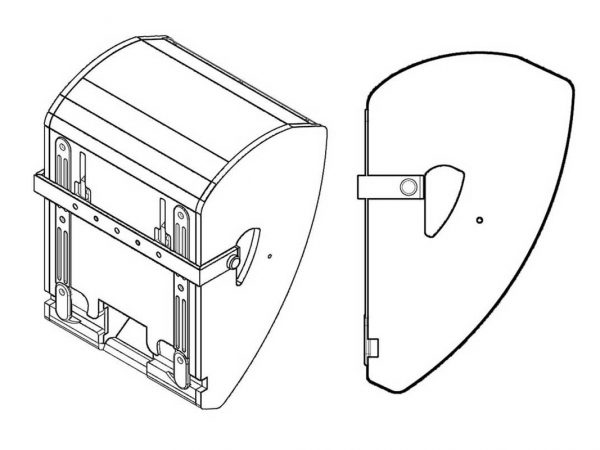

Accessories

Downloads

FileAction
CUE TWO DatasheetDownload
CUE TWO CAD Drawing 2DDownload
CUE TWO CAD Drawing 3DDownload
CUE TWO Accessories - Drawings.zipDownload
CODA Audio Weather Protection Download
