- 18” ultra low distortion woofer
- Extended frequency range: 28 Hz – 150 Hz (-6 dB)
- High power handling: 1,250 W (AES)
- Maximum SPL 138 dB (peak)
- Unique Array Keeper accessory system
- System integration with LINUS DSP amplifiers
Flyable 18" Subwoofer for APSi
This post is also available in:
Deutsch (German)

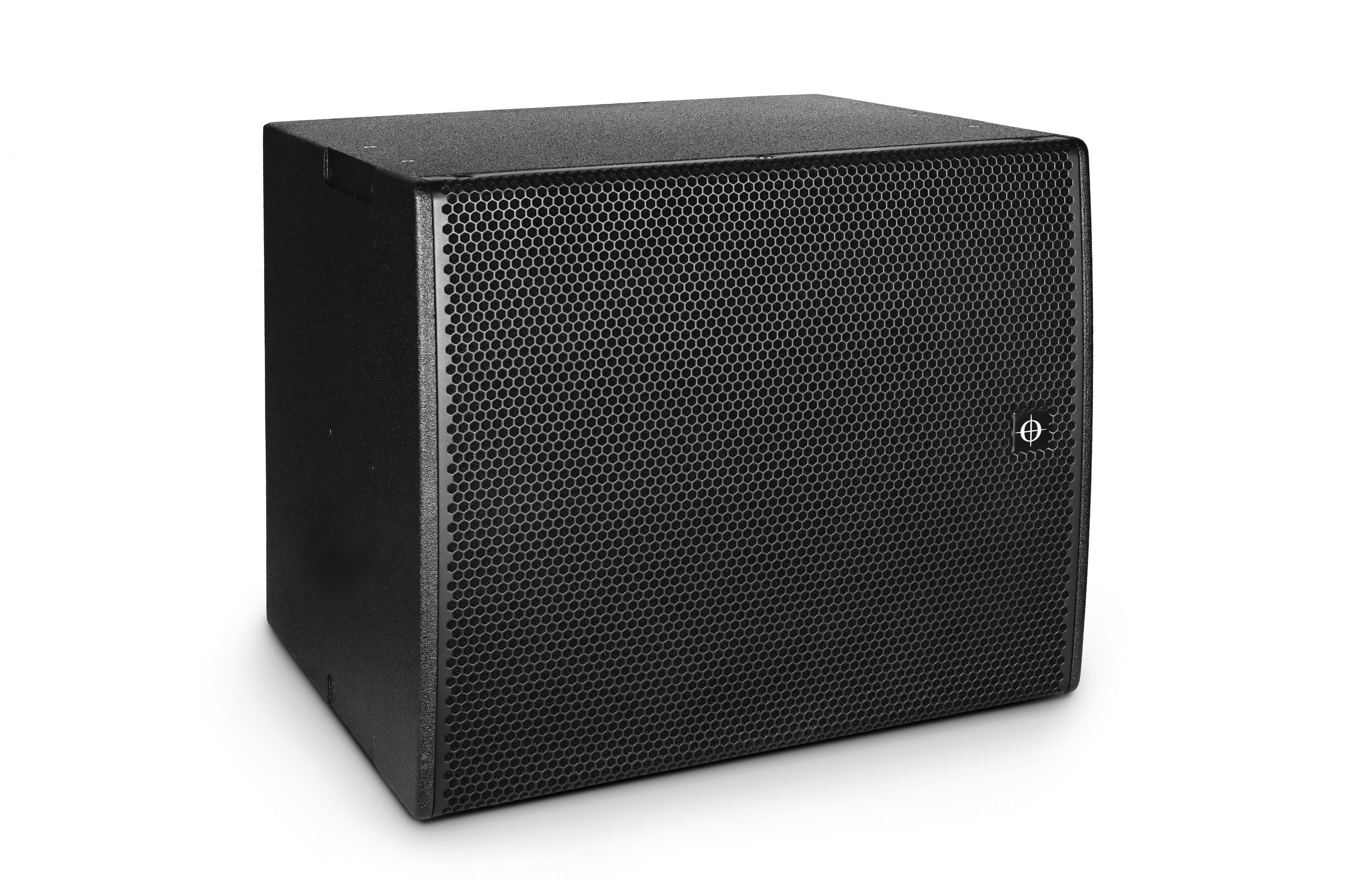

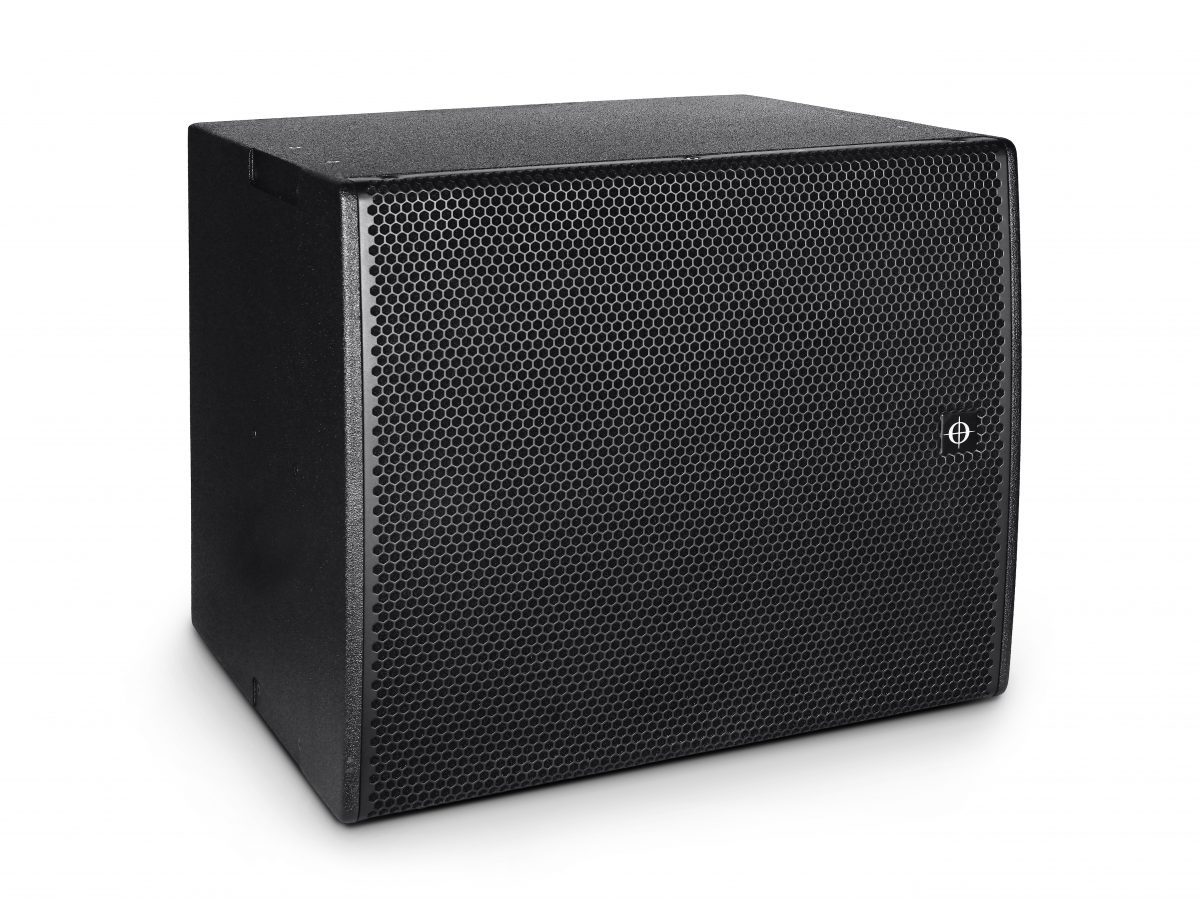

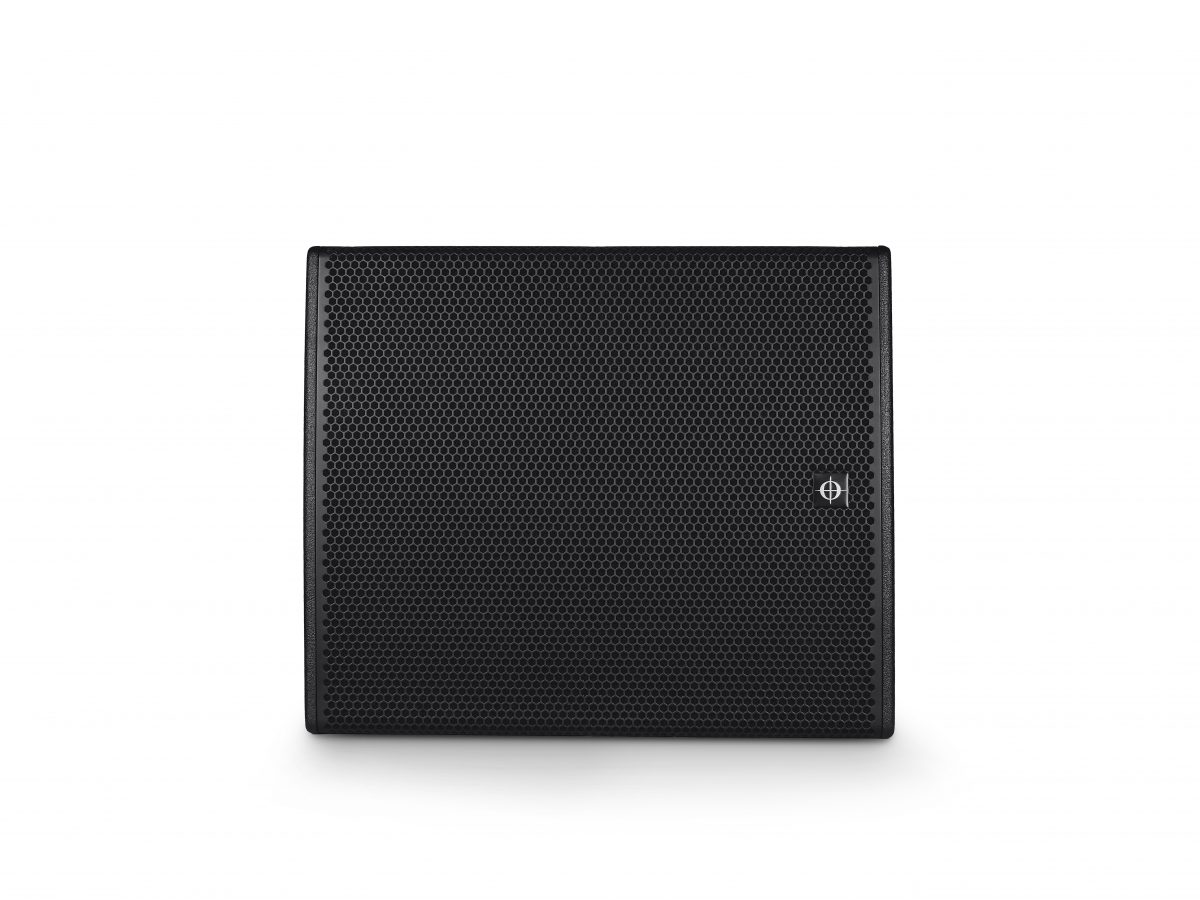

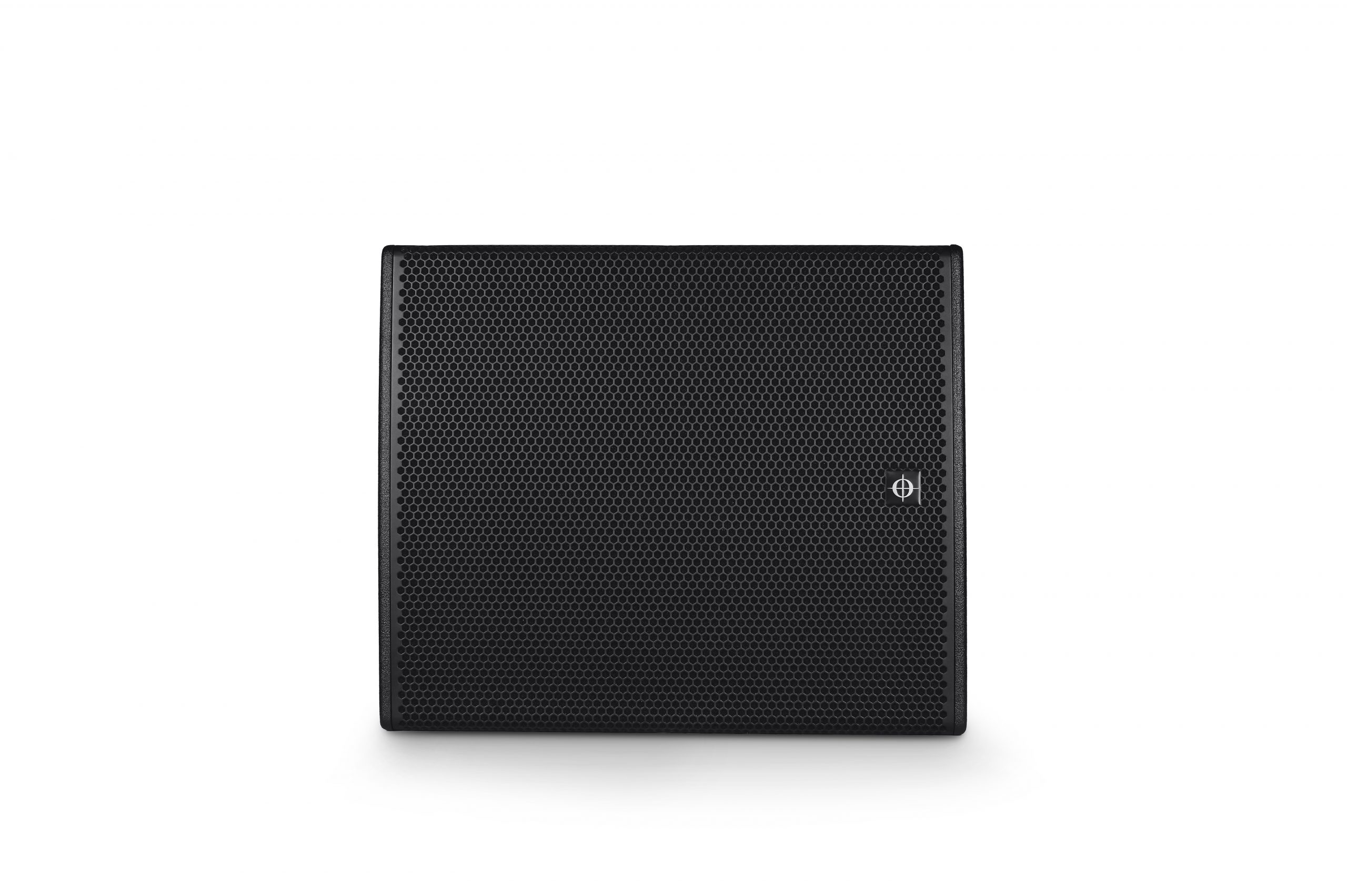

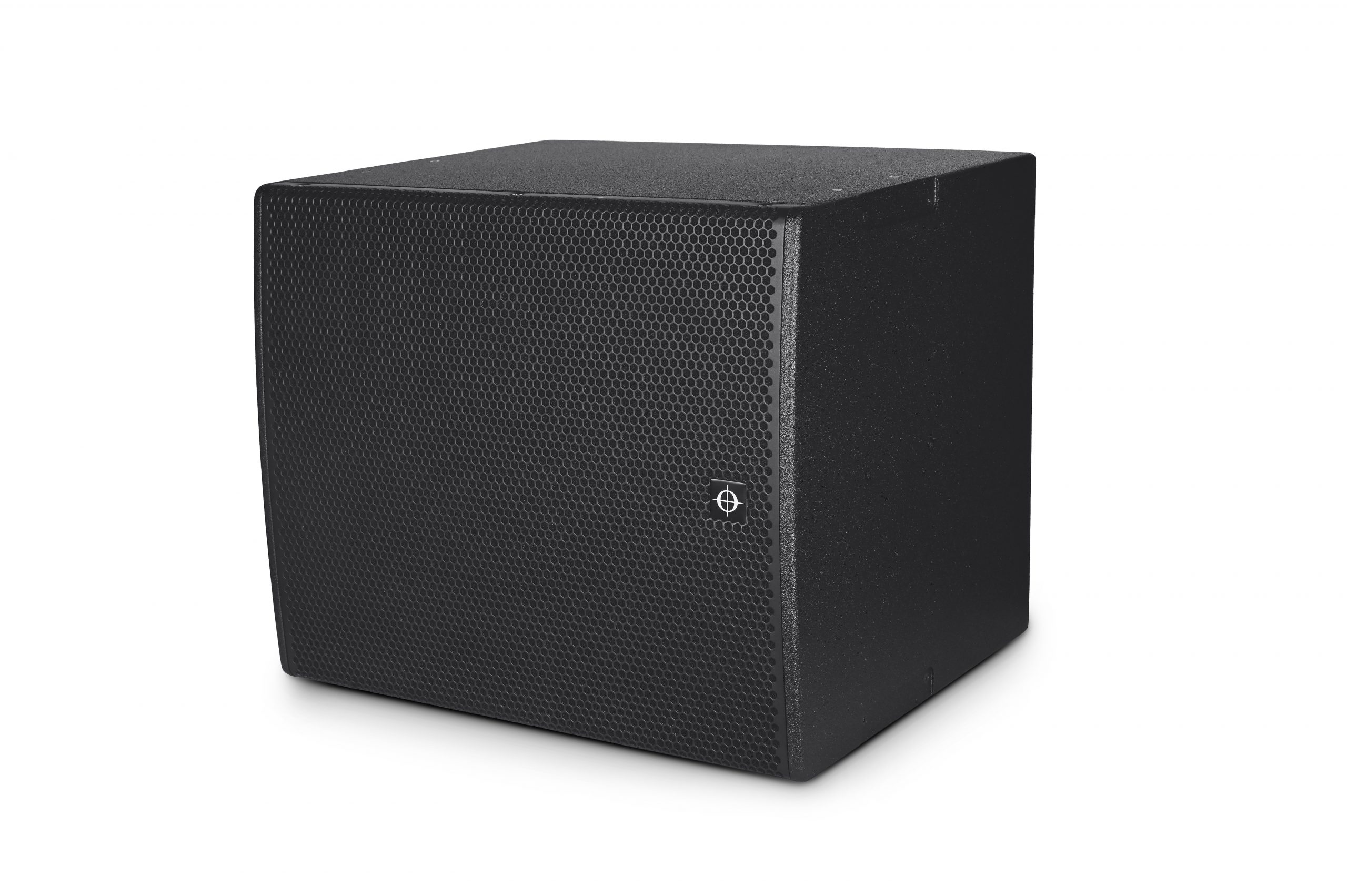

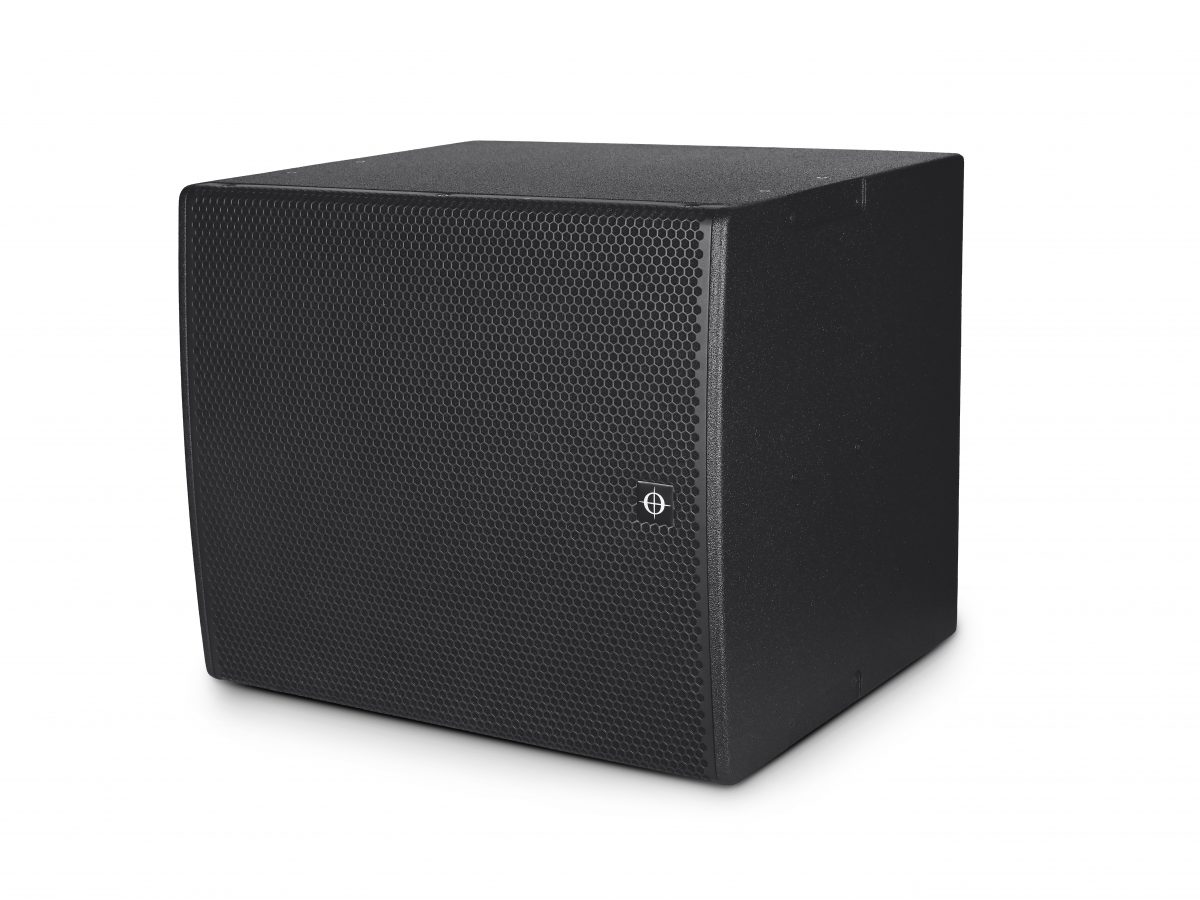

The APSi-SUB is an 18” high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for installation applications.
The APSi-SUB is equipped with an extremely long excursion 18” ultra low distortion driver. The strong motor delivers extreme high magnetic flux for increased efficiency. The 4” voice coil ensures ultra linear excursion of 20 mm / pp at consistent magnetic force.
The state-of-the-art carbon-fiber cone ensures maximum stiffness and low moving mass. Three aluminum shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.
The APSi-SUB is designed to work exclusively with CODA Audio LINUS amplifiers as an integrated solution
for DSP control, amplification, network remote control and diagnostics.
The integrated solution ensures optimal performance and protection.
10x APSi-Pro-D
2x APSi-Pro-S
2x APSi-SUB
2x LINUS-V1804
4x APSi-Pro-D
2x APSi-Pro-S
2x APSi-SUB
1x LINUS-V1804
6x APSi-Pro-D
2x APSi-Pro-S
2x APSi-SUB
3x LINUS6.4
| Type: | Flyable 18″ Subwoofer for APSi |
|---|---|
| Application: | Installations for small / medium venues |
| Frequency response (-6 dB): | 28 Hz – 150 Hz |
| Power handling AES / peak (passive): | 1250 W / 5000 W |
| Maximum peak SPL (with LINUS14): | 138 dB* |
| Amplification, cabinets per amplifier (Optimum / Maximum) |
|
| LINUS14/D: | 8/12 |
| LINUS12C: | 8/12 |
| LINUS6.4i/D SE: | 4/8 |
| LINUS6.4i/D BTL: | 2/4 |
| LINUS-V908 SE: | 8/16 |
| LINUS-V908 BTL: | 4/8 |
| LINUS-V1804 SE: | 4/8 |
| Components: | 18″ ultra low distortion woofer, 4″ (101.6 mm) VC, 1250 W (AES) |
| Nominal impendance: | 8 Ω (1+/1-) |

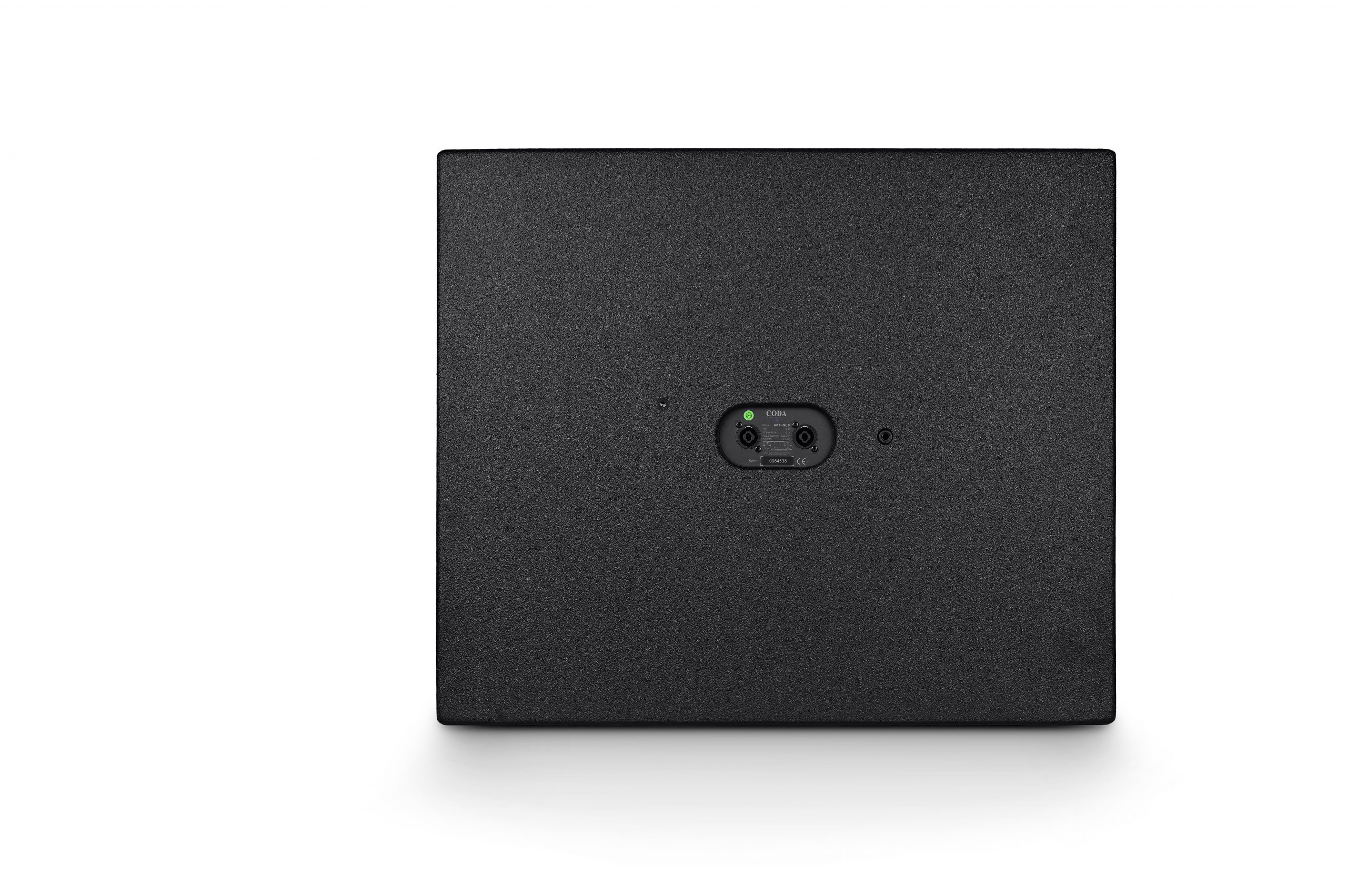

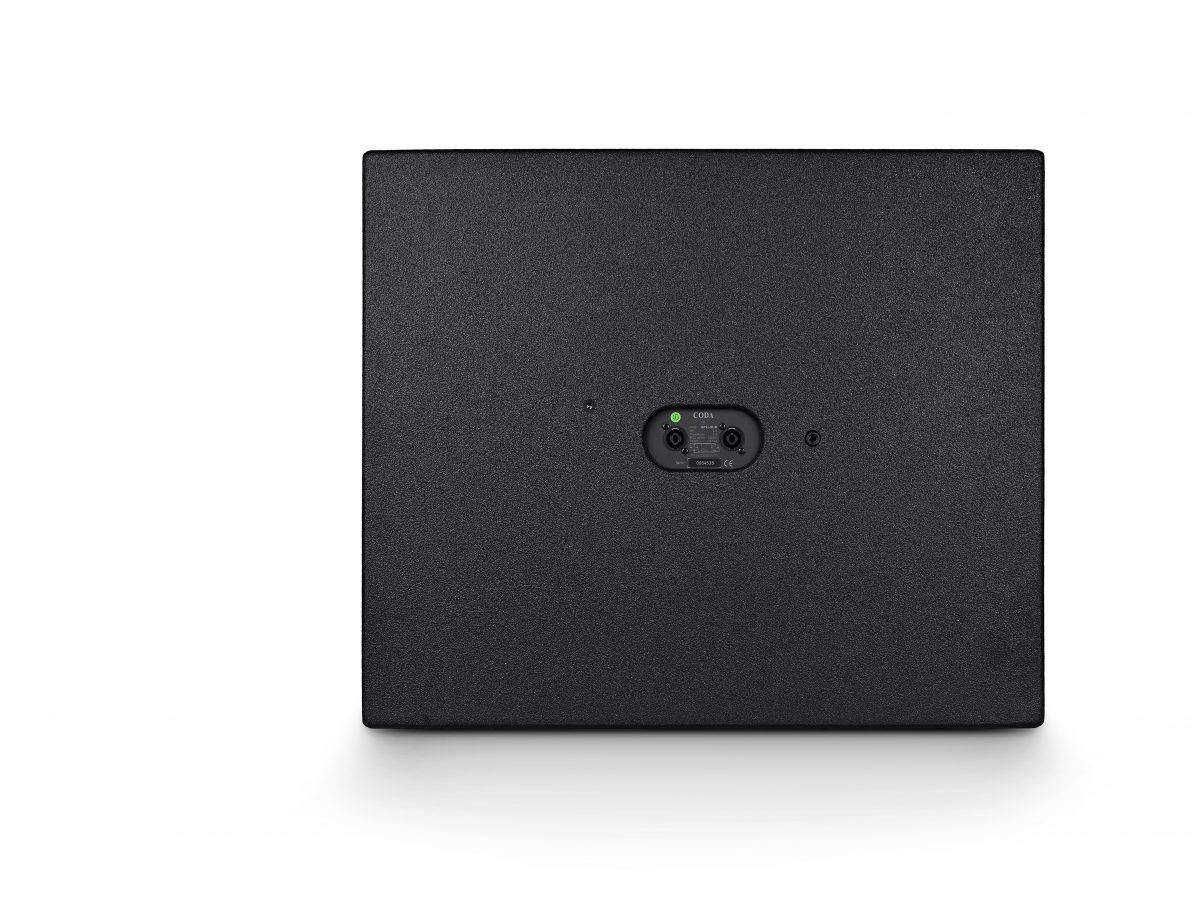

| Input connectors: | 2x Neutrik™ NL4MP |
| Suspension: | Rigging plates** |
| Enclosure material: | Baltic birch |
| Finish: | Polyurea coating |
| IP rating (IEC 60529) | IP54 |
| Weather protection options: | Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55 |
| Dimensions (WxHxD): | 674 x 570 x 596 mm / 26.54 x 22.44 x 23.46″ |
| Net weight: | 45.5 kg / 100.31 lbs |
* Measured with pink noise 12 dB Crest Factor.
**Array Keeper system (customisable).
This post is also available in:
Deutsch (German)
Array Keeper system blockplates (customizable)
This post is also available in:
Deutsch (German)

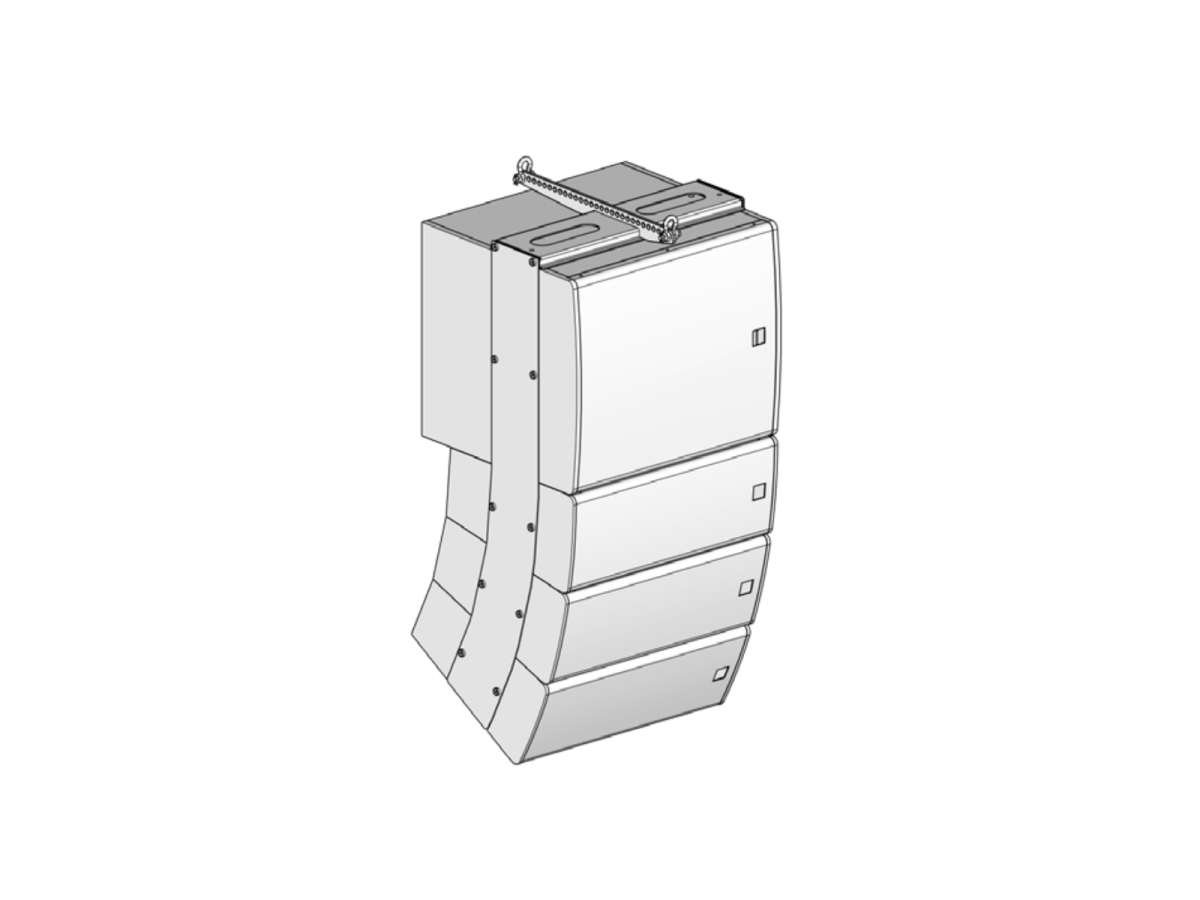

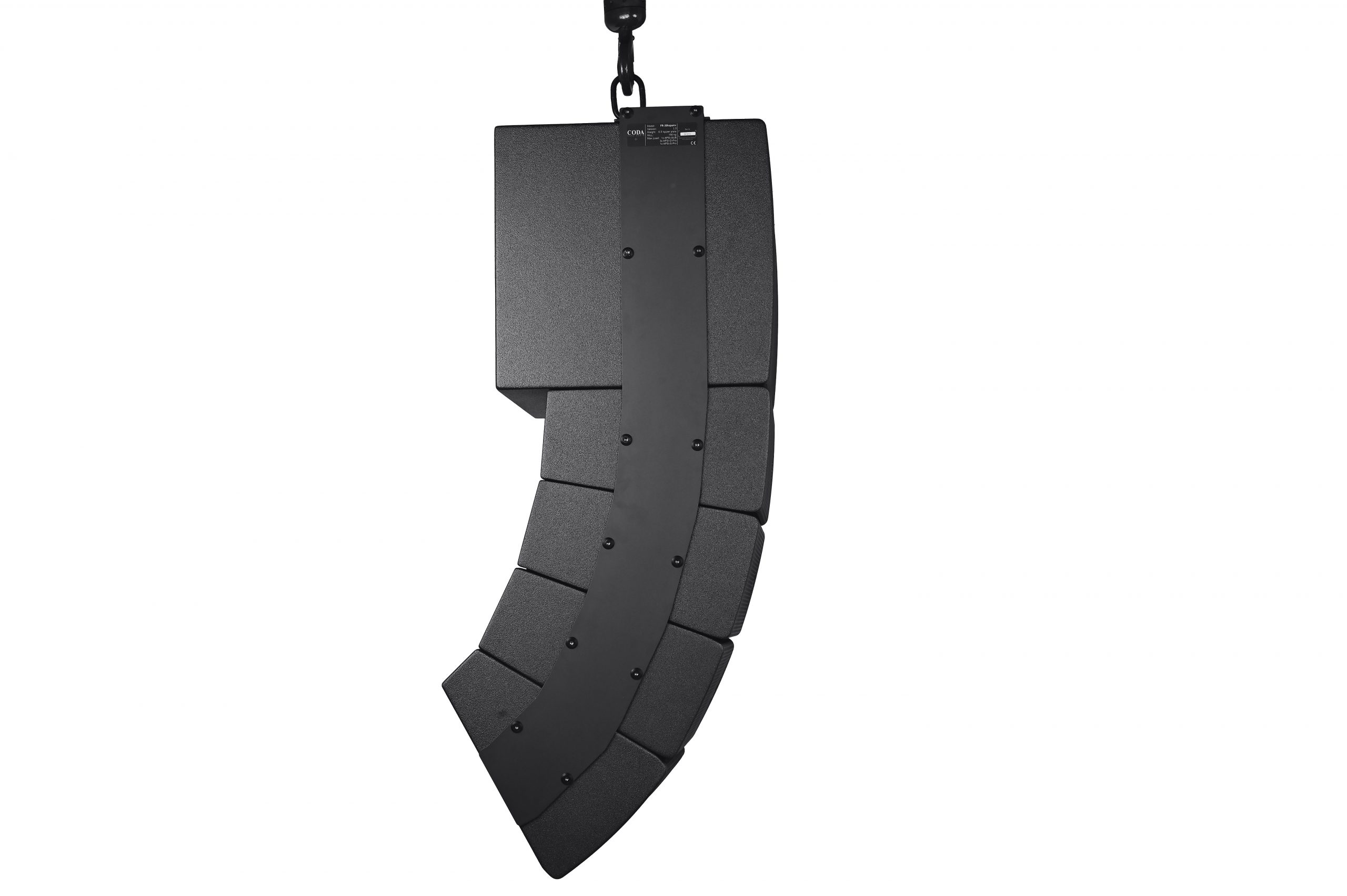

Frame for vertically arrayed APSi or APSi-SUB
