PW418 : Multipurpose Subwoofer.

High Output Dual 18" Multipurpose Subwoofer

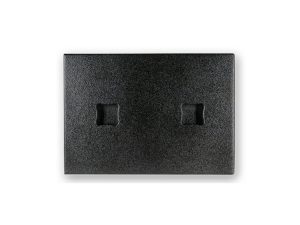

PW418 Photo
PW418 Photo
PW418 Photo
PW418 Photo
PW418 Size Comparison
PW418 Photo
PW418 Photo
PW418 Photo
PW418 Photo
PW418 Size Comparison

Double 18" ultra low distortion woofer, very high power handling of 2500 W

  • The PW418 is a double 18" high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for dance clubs, large installation applications.

Main Features

  • 2x 18″ ultra low distortion drivers
  • Linear frequency response down to 28 Hz
  • Maximum SPL 145 dB (peak)
  • Low power compression
  • System integration with CODA LiNUS amplifiers

This post is also available in: Deutsch (German)

The PW418 is equipped with twin extremely long excursion 18“ neodymium ultra low distortion woofers. The neodymium motor delivers extreme high magnetic flux for increased efficiency. The 4″ voice coil is 38 mm high, ensuring ultra linear excursion of 26 mm / pp at consistent magnetic force.

The state-of-the-art carbon-fiber cone ensures maximum stiffness and low moving mass. Three aluminum shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.

The PW418 is designed to work exclusively with CODA Audio LINUS amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostic. The integrated solution ensures optimal performance and protection.

The PW418 is perfectly suited as a sub-extension for G700-Series and D-Series, extending the system performance down to 28 Hz. Typical applications are dance clubs, theatres, houses of worship and live sound venues.




Type: High Output Dual 18″ Multipurpose Subwoofer
Application: Medium / large venues subwoofer
Frequency response (-6 dB): 28 Hz – 120 Hz
Power handling (AES/peak): 2500 W / 10000 W
Sensitivity 1 W / 1 m:* 105 dB
Maximum output peak:** 145 dB
Amplification, Cabinets per Amplifier:
LINUS10-C Optimum / Maximum: 4/4
LINUS12C Optimum / Maximum: 4/4
LINUS14 Optimum / Maximum: 4/4
Components: 2x 18″ ultra low distortion neodymium woofers, 4″ (101.6 mm) voice coil, 1250 W (AES) each
Nominal impedance: 4 Ohm (+1/-1)
Input connectors: 2x Neutrik™ NL4MP
Suspension: N/A
Enclosure material: Birch plywood
Finish: Polyurea coating (water resistant)
Dimensions (WxHxD): 1164 x 584 x 780 mm / 45.83 x 22.99 x 30.71″
Net weight: 85 kg / 187.39 lbs


Product Datasheet PW418Download
PW418 CAD Drawing 2DDownload
PW418 CAD Drawing 3DDownload
CODA Audio Weather Protection Download
