LiNET Master :

Redundant 19" AES To LiNET Converter

LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo
LiNET Master Photo

Converts AES/EBU to LiNET, 4x AES/EBU inputs (8 channels)

  • LiNET Master is the bridge between a mixing console and the CODA digital audio network. It serves as a perfect AES/EBU frontend ensuring ultimate compatibility to the entire audio chain.


Main Features

  • 19” / 1U
  • Converts AES/EBU to LiNET
  • 4x AES/EBU inputs (8 channels)
  • 1x LiNET input (8 channels)
  • 4x LiNET outputs
  • Word Clock
  • Sample rate 44.1 – 192 kHz
  • Dual redundant power supply
  • Compatible with all LINUS devices
  • Redundant connection to LiNET Switch
  • 5 year warranty

This post is also available in: Deutsch (German)

Overview

LiNET Master is the bridge between a mixing console and the CODA digital transport system. It serves as a perfect AES/EBU front-end ensuring ultimate compatibility and redundancy to the entire audio chain.

High quality 44.1 – 192 kHz sample rate converters integrated seamlessly with a pristine word clock guarantee excellent audio transmission with perfect synchronisation at lengths of 300 m with shielded CAT5e cabling, or longer with shielded CAT6A.

System Solutions

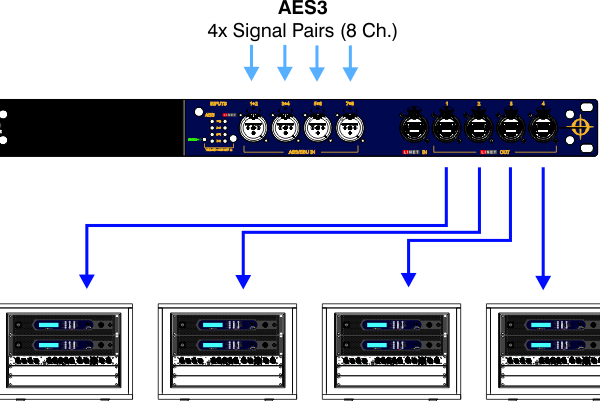

EASY SETUP …

SYSTEM COMPONENTS:

1x LiNET Master

Cables:

4x CAT5 Cables

EASY SETUP – LINUS-C …

SYSTEM COMPONENTS:

1x LiNET Master

Cables:

1x CAY-LiNET
1x CAT5 Cables

Downloads

FileAction
LINET Master Data Sheet (all DATAD devices)Download
