OVERVIEW

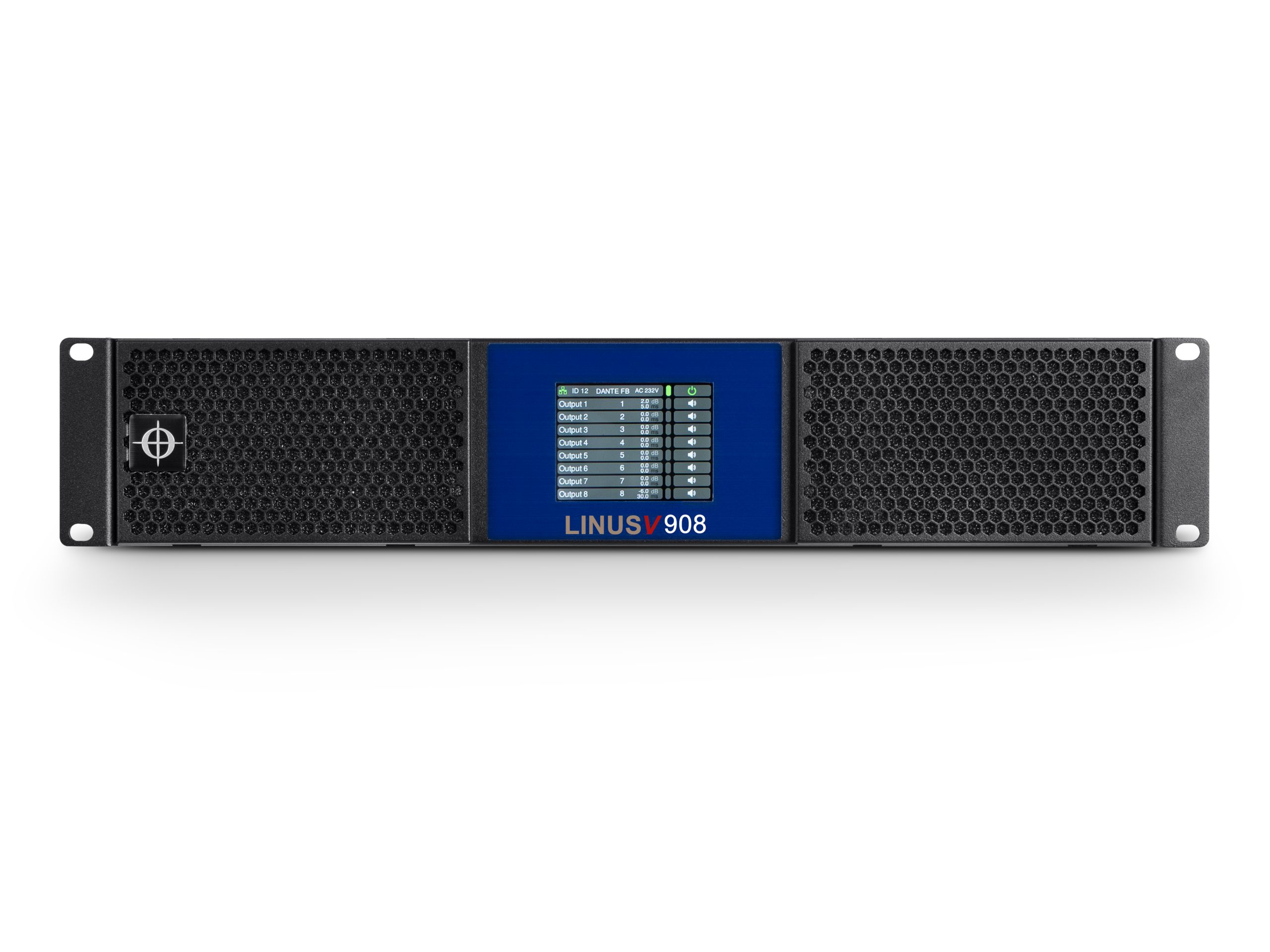

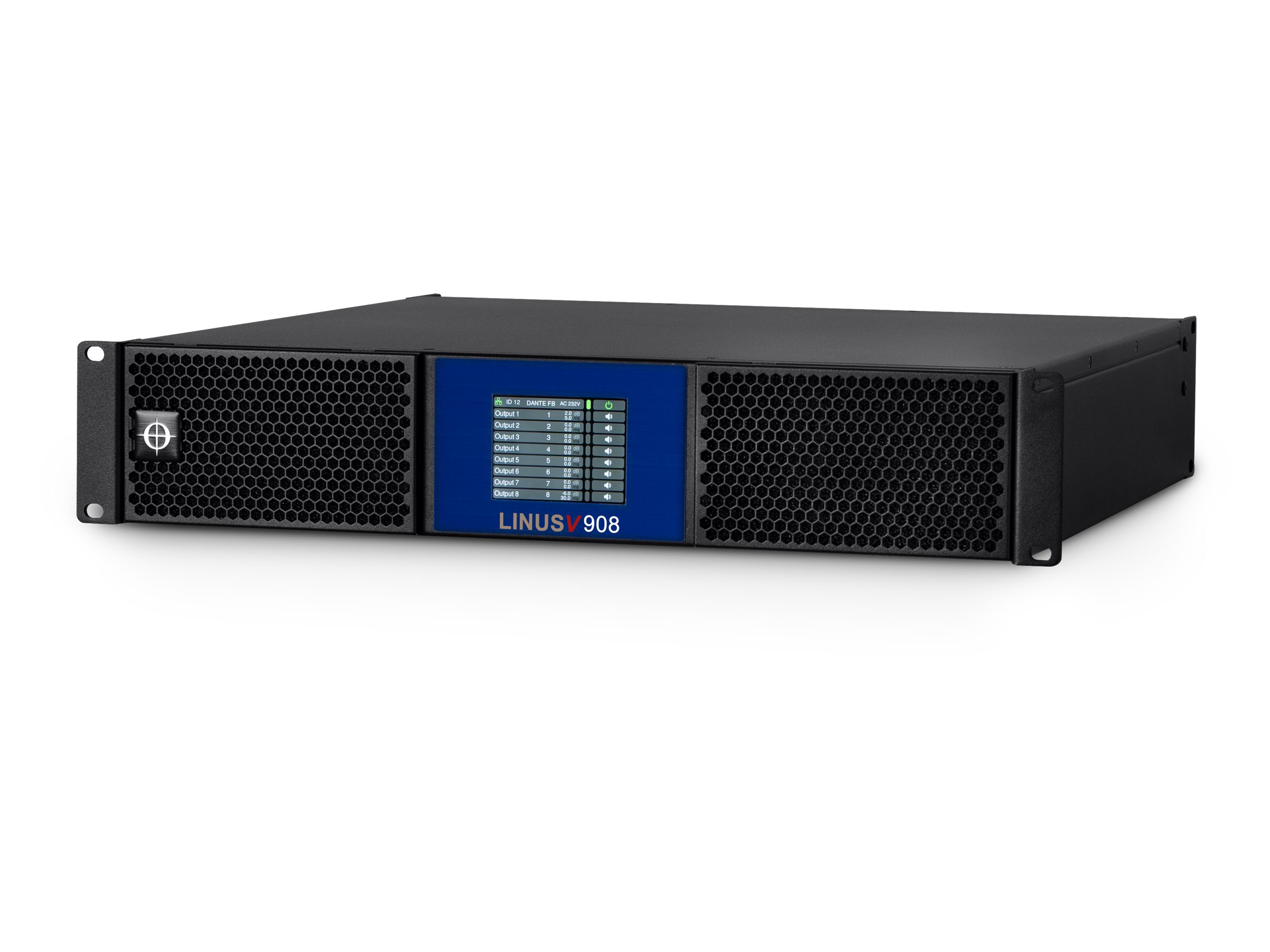

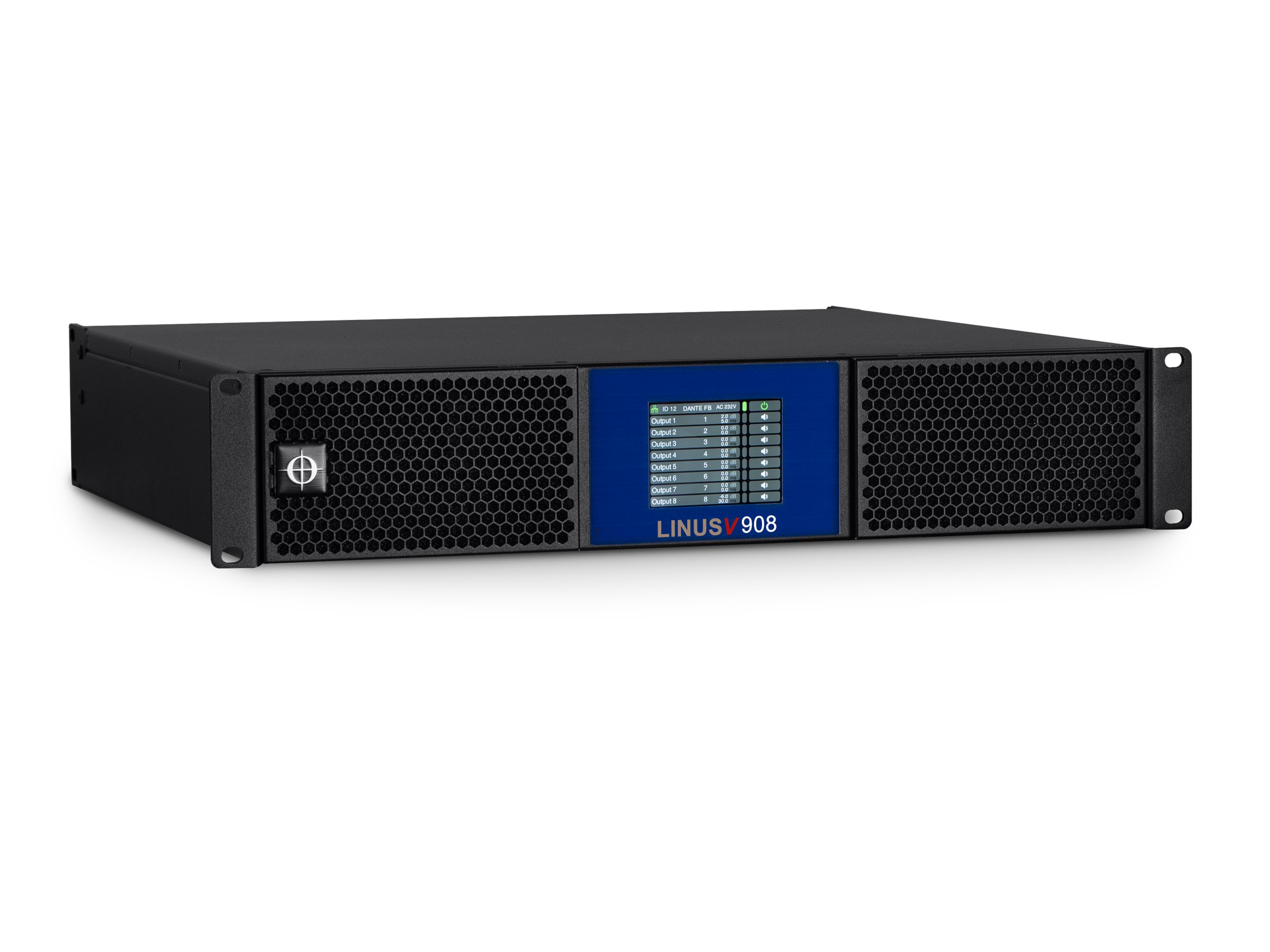

The LINUS-V908 is an eight-channel touring-grade power amplifier based on CODA Audio’s latest amplifier topology. Designed in a compact 2U format, it provides high power density and very low distortion performance, ensuring accurate and reliable audio reproduction in professional touring and portable system applications.
The V908 delivers 1500 W at 2 ohms per channel across eight channels. Channels can be bridged independently, allowing flexible output configurations of 1500 W at 4 ohms or 3000 W at 4 ohms, enabling efficient system scaling and configuration flexibility.
The amplifier incorporates a new DSP architecture, supporting future firmware updates and long-term adaptability.
Dual high-efficiency SMPS with power factor correction (PFC) allows operation across a 100–240 V mains voltage range.
Analogue and LiNET inputs are provided as standard, with Dante connectivity available on the V908-D model.
Factory presets for CODA loudspeakers—excluding sensor-controlled subwoofers and large-format line arrays—are stored internally and accessed via the 320 × 240 pixel touchscreen. Control is available locally, via the LINUS Control App for individual amplifiers, or through networked operation using LINUS Control Software for full system management.
The LINUS-V908 is engineered for touring reliability and is covered by a five-year guarantee. Ongoing firmware updates ensure continued compatibility, updated presets and specialist functionality.
Power that punches above its size. Control that fits in your pocket.
Specification
| GENERAL |
| Number of output channels |
8 |
| Output stage |
Class D-IC |
| Internal samplerate / bit-depth |
48 kHz / 64 bit |
Signal-to-noise ratio
(22 Hz – 20 kHz, 4 Ω – analogue input) |
>105 dB (unweighted)
>108 dB (A-weighted) |
Signal-to-noice ratio
(22 Hz – 20 kHz, 4 Ω – digital input) |
>113 dB (unweighted)
>116 dB (A-weighted) |
Frequency response
(8 Ω load with CLEAR preset) |
20 Hz – 20 kHz = (+0.3 dB /-0.2 dB) |
THD+N & IMD
(4 Ω load @ 1/2 output power) |
20 Hz – 20 kHz = < 0.05% |
Latency
(input to loudspeaker output) |
Minimum 2.70 ms AES/EBU input
Minimum 2.00 ms analog input |
| Protection circuits |
Inrush current limiter
Thermal limiter
Output DC
SMPS over-current
Output overload |
| User interface |
IPS Touchscreen 240×320
Mute / Status / Limit / Signal / Protection / Ethernet / Power on / Mains voltage
Front panel control of audio parameters: Preset / Delay / Mute / Snapshot / Standby |
| Ethernet connection |
2 × 100 Mbps RJ45 Control (1 port accepts PoE 802.3af backup power for DSP)
2 × 1000 Mbps RJ45 Dante™ (Redundant) |
| AC Mains |
| AC mains |
32A powerCON® |
| AC mains input connector |
100 V – 240 V AC with PFC |
| AC mains voltage (nominal)** |
90 V – 264 V AC |
| AC mains voltage (maximum)** |
Amplifier in standby = 16 W
Amplifier idle = 40 W
Amplifier ¼ power = 3000 W |
| AC mains frequency |
47 – 63 Hz |
| Input |
| Input sources |
Analog & LINET & DANTE™ (optional) |
Analogue input impedance
(balanced) |
20 kΩ |
| Maximum input level (analogue differential) |
+21 dBu |

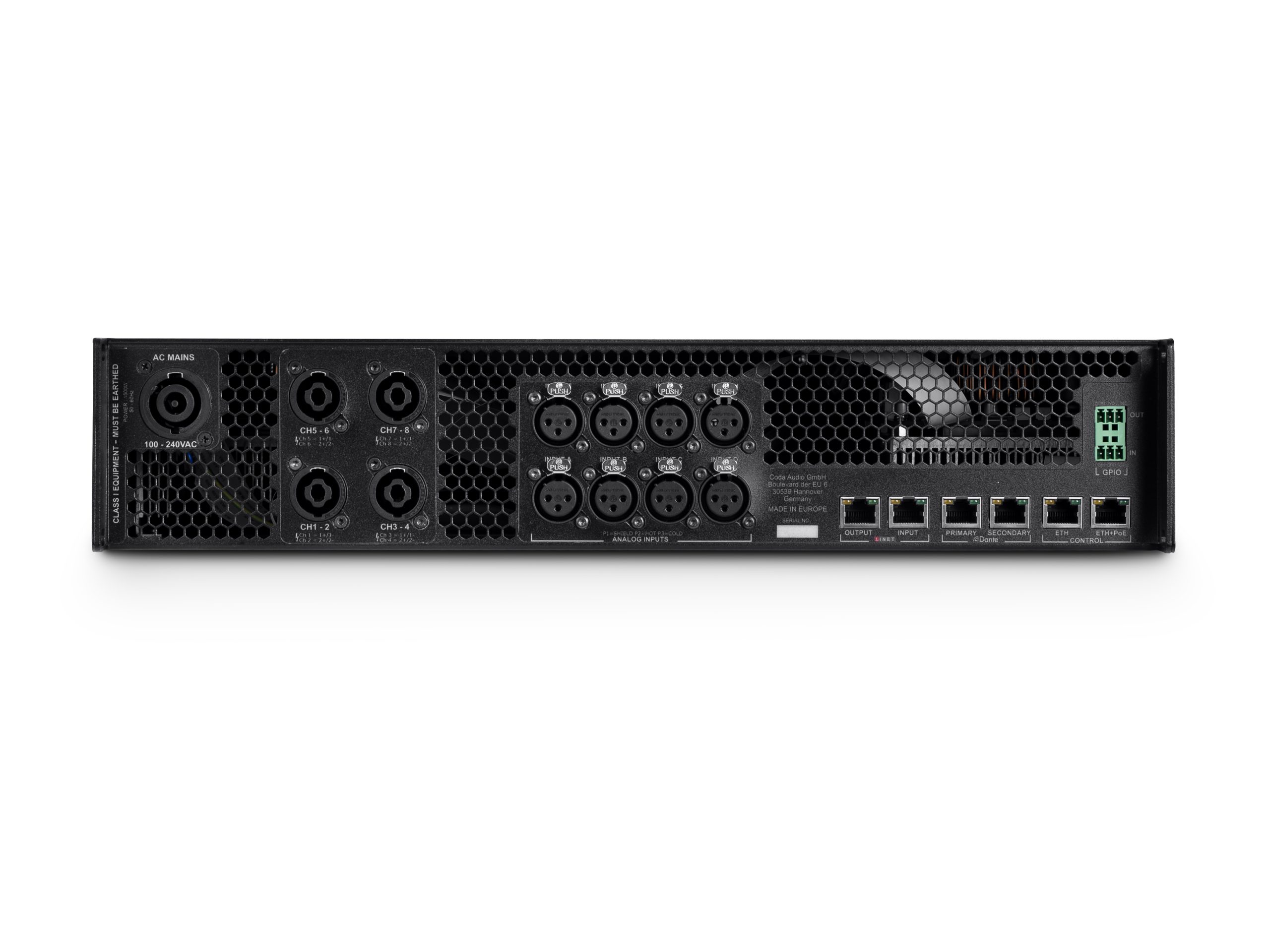

| Input connections |
8 × XLR Female
1 × RJ45 LINET IN (8 × CH)
1 × RJ45 LINET LINK (8 × CH)
2 × RJ45 DANTE IN (8 × CH) (optional) |
| Output |
RMS output power*
(20 Hz – 20 kHz, THD <0.01%)
(all channels driven, 12 dB Crest Factor) |
500 W @ 8 Ω
800 W @ 4 Ω
1500 W @ 2 Ω
1600 W @ 8 Ω bridged
3000 W @ 4 Ω bridged |
Peak output power*
(20 Hz – 20 kHz, 6 dB Crest Factor)
(all channels driven) |
1000 W @ 8 Ω
1600 W @ 4 Ω
3000 W @ 2 Ω
3200 W @ 8 Ω bridged
6000 W @ 4 Ω bridged |
| Maximum output voltage* |
+/- 90 V pk
+/- 160 pk (bridge) |
| Maximum output current* |
+/- 40 A pk |
Damping Factor
(8 Ω load, 1 kHz & below) |
>2500 |
| Minimum output load |
2 Ω per channel
4 Ω in bridged mode |
| Power output connections |
4 × SpeakON® 4 pole |
| Thermal |
| Operating temperature |
+5°C to +55°C
41°F to 131°F |
Thermal output
(BTU/h) |
TBD |
Thermal output
(kWh) |
TBD |
| Cooling |
2 × thermally controlled fans. Hot air expelled at rear. |
| Physical |
| Dimensions (WxHxD) |
483.5 x 88 x 454.18 mm / 19” x 3.4” x 17.8” (2U) |
| Shipping Dim. (WxHxD) |
675 x 130 x 560 mm (0.049 m³) / 26.5” x 5.1” x 22” |
| Net Weight |
12 kg / 26.46 lbs. |
| Shipping weight |
14.75 kg / 32.52 lbs. |
* Typical values – some variation may exist due to component tolerances.
**Voltage range should not be exceeded. Amplifier output power performance will degrade below nominal voltage & increase above nominal voltage.
E&OE
