Sensor Controlled Subwoofer With Versatile Pattern Control
This post is also available in:
English (Englisch)
When it comes to subwoofers, CODA Audio has a sizeable offering of extremely smart boxes for a wide range of applications. What’s particularly smart about these subs is the fact they are sensor controlled, which means they’re way ahead of the field from the offset: these speakers are capable of delivering measurable and very audible advantages in impulse response, group delay, waterfall, and the distortion domain.
In short, between 35 and 100Hz, the audio is time aligned; and the group delay increases slightly in the 25-35Hz range. As a result, you get an extremely precise and musical low end, with sonic qualities that go way beyond any conventional port loaded system.

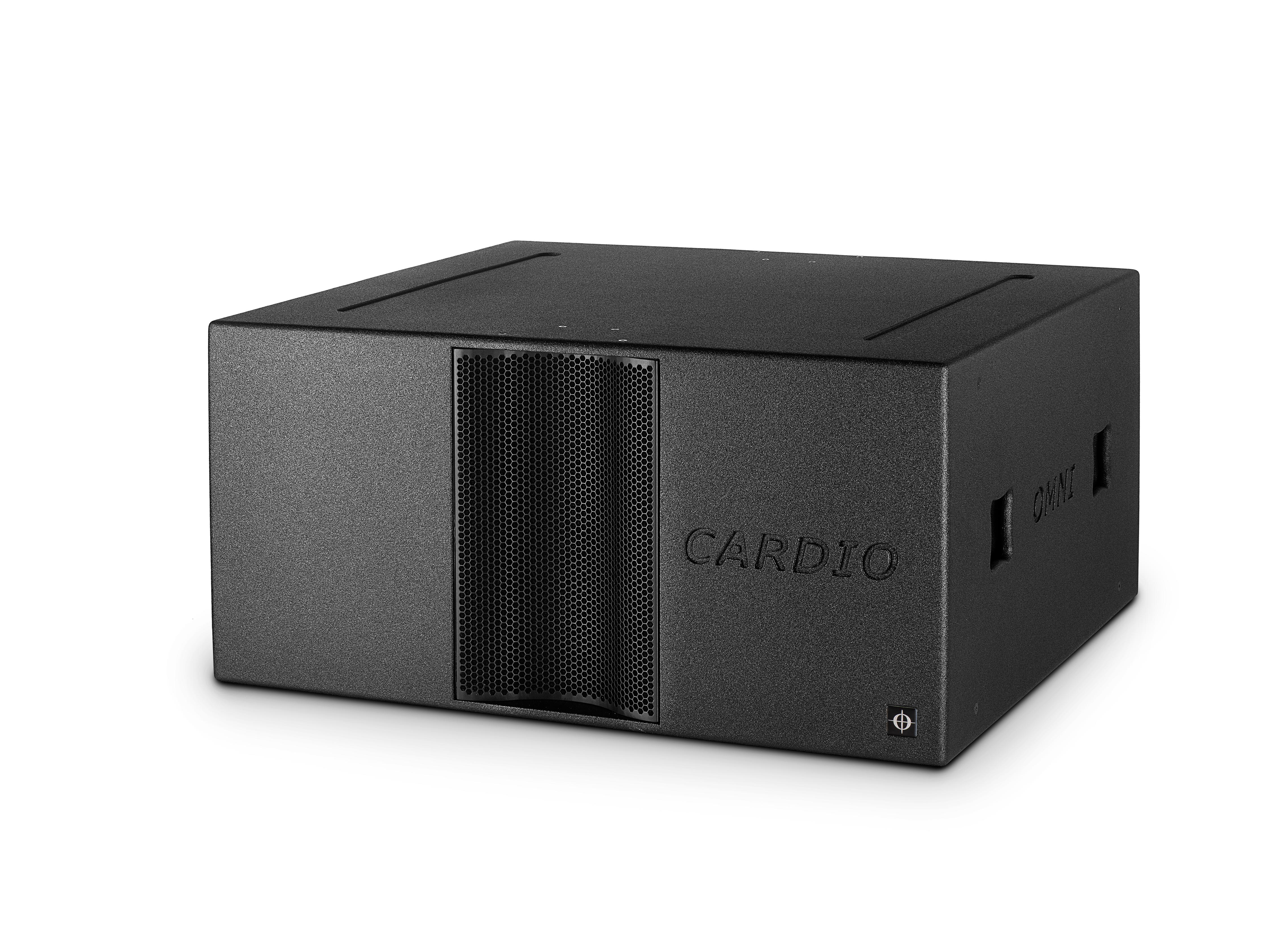

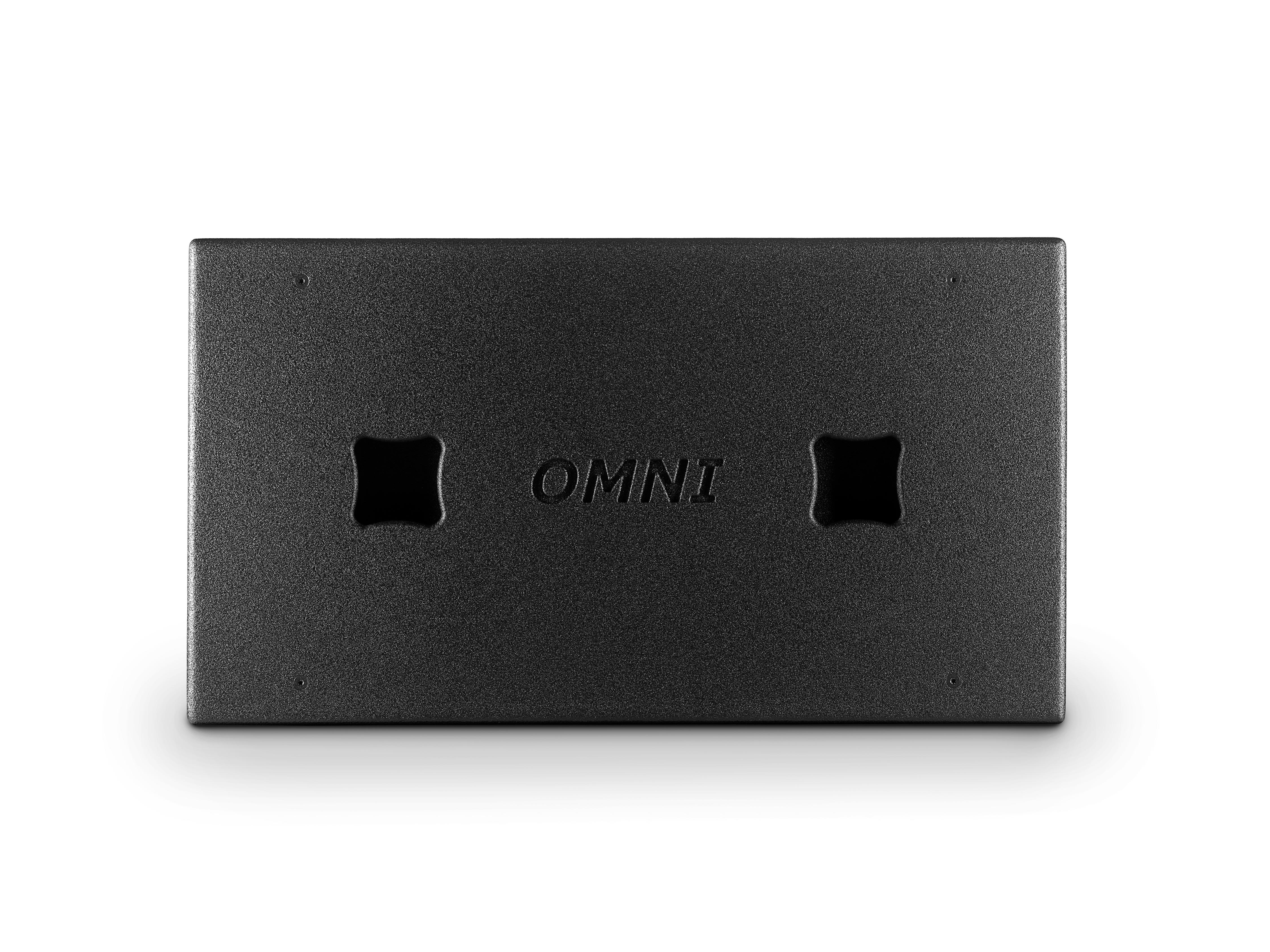

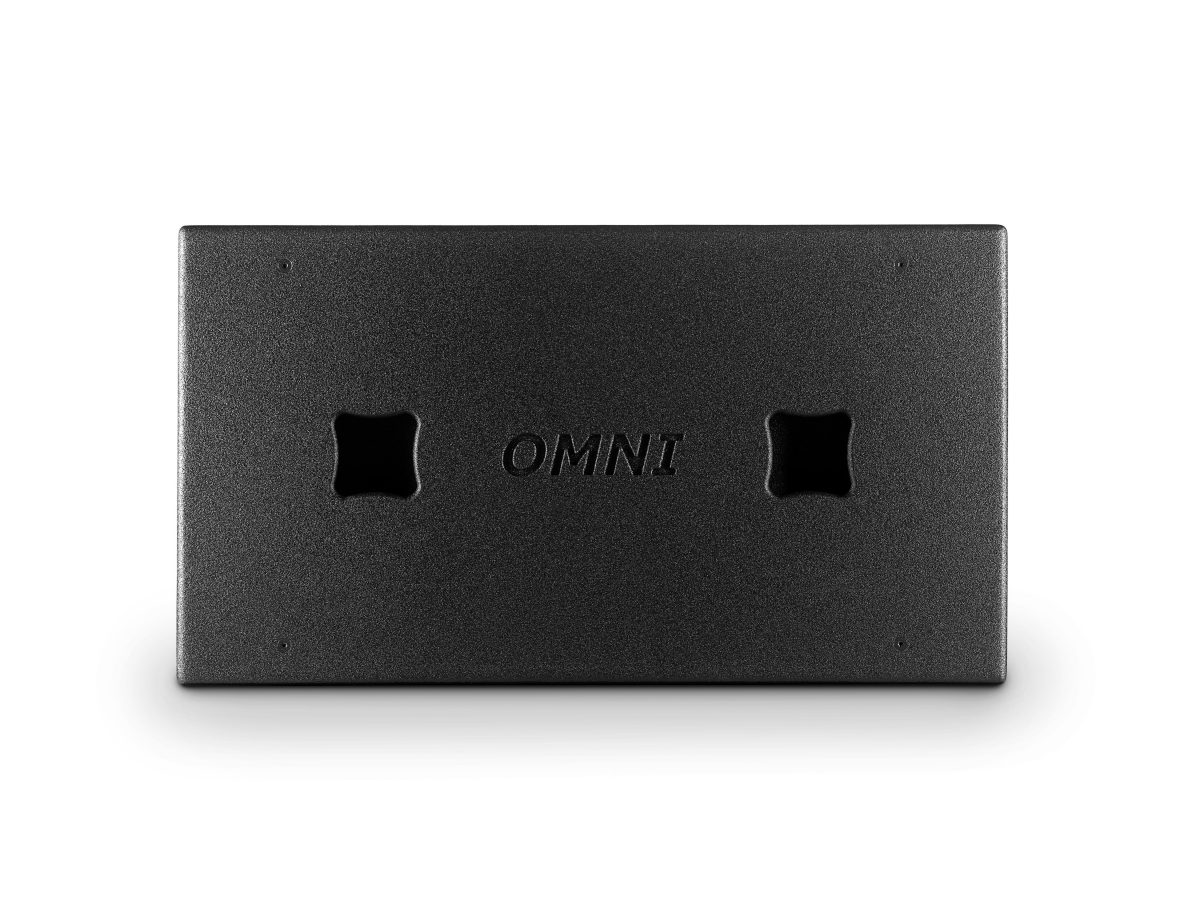

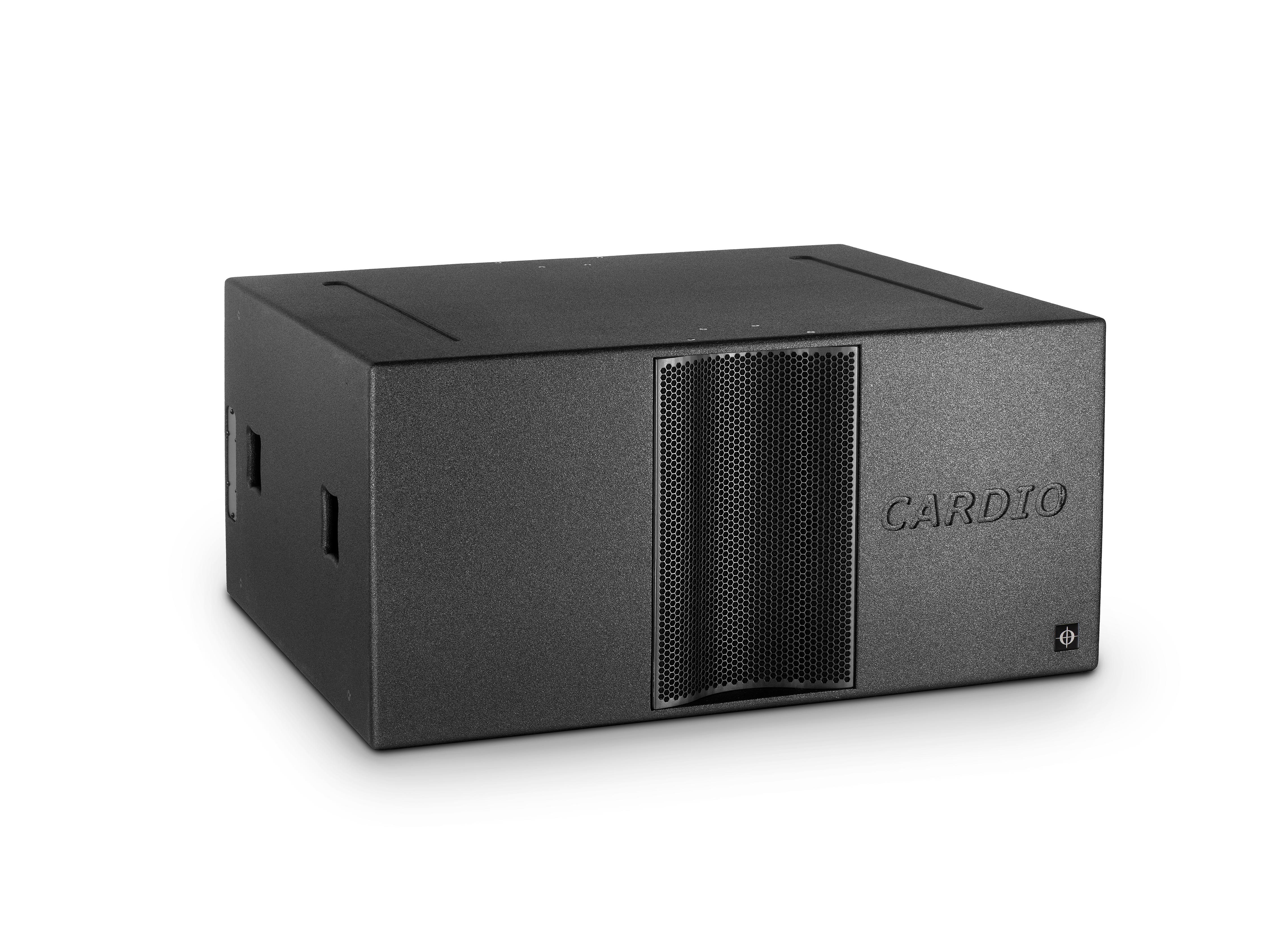

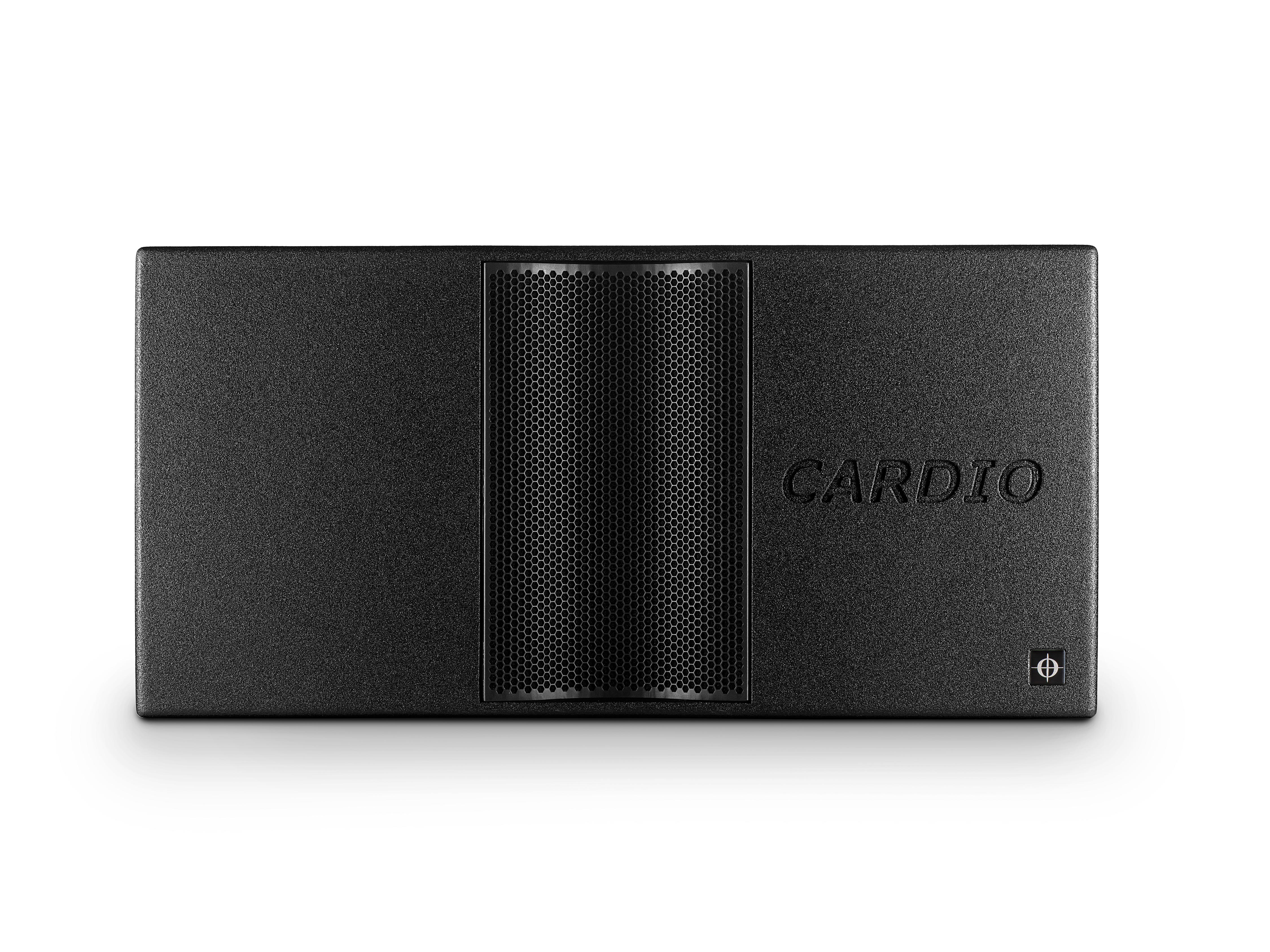

At the core of SC8 (which works in Cardio or Omni mode) are four very efficient, high output 18-inch long neodymium excursion woofers, which provide a completely flat response down to 20Hz (-6dB), and hardly any distortion at all.
Then, as with all CODA products, comes the unique driver capabilities: SC8 has a built in ‚velocity sensor‘ within its 18-inch driver, which measures the exact movement of the voice coil by sending information over XLR cable to the Comparator about velocity, excursion, and speed of the voice coil itself. In turn, the Comparator then compares the original input signal to the movement measurement from the ‚velocity sensor‘, and adjusts the amplifier driving voltage and/or current, so the diaphragm can move the way it should move.
The Comparator brings Total Harmonic Distortion (THD) down by a massive 80-90%, which means this speaker can be modified without any equaliser or high pass filters: the Comparator not only compensates for the non-linearities of the speaker, but the frequency response as well.

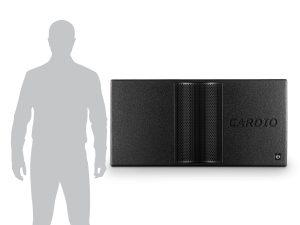

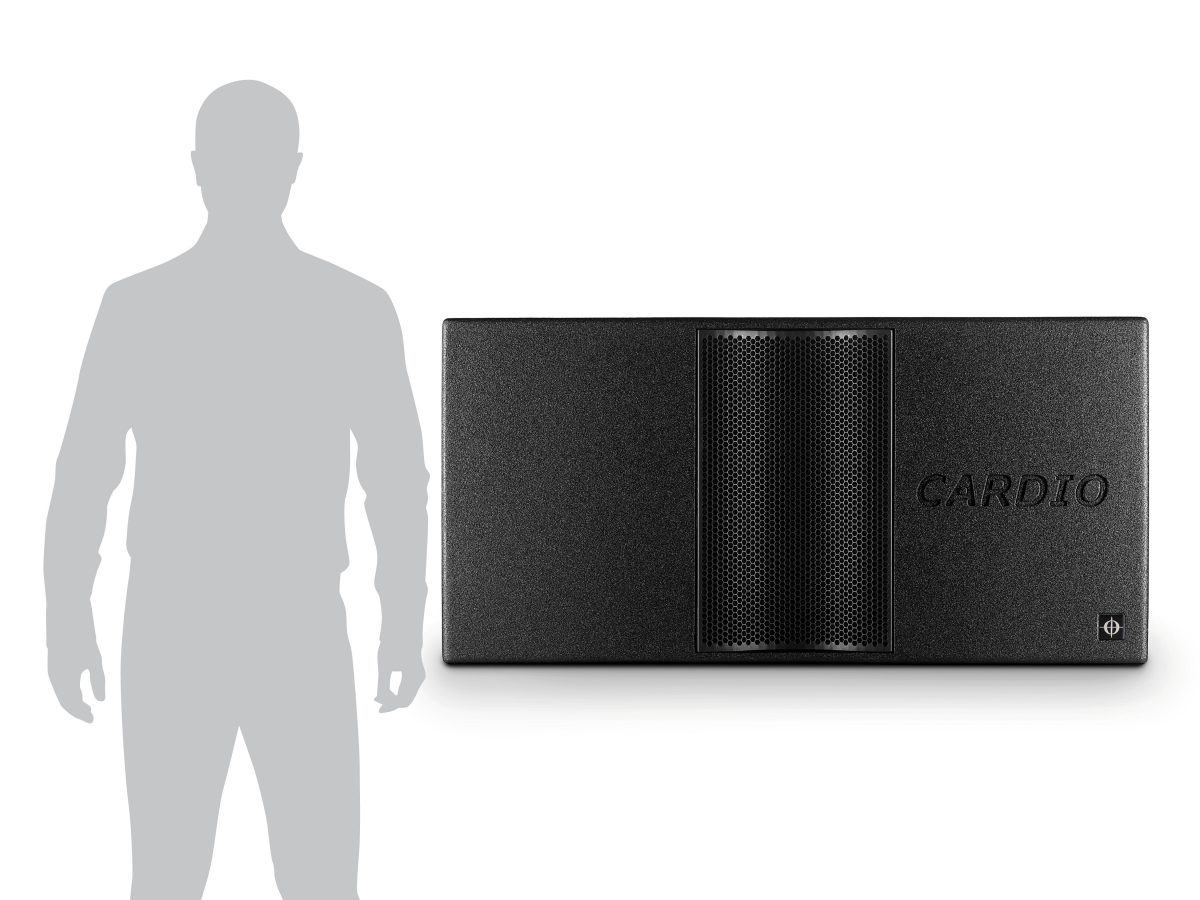

Furthermore, the output to size ratio of this box is pretty remarkable, reducing up to 50% of the cabinet volume: in real terms, that means this 4 x 18-inch cabinet is basically the same size as a conventional double 18-inch sub. Twice the room in the truck, half the relative cost.
SC8 can also be ordered with or without flying hardware, so they can be hung or ground-stacked in any number of configurations for touring sound applications, live music clubs, theatres, nightclubs, or Houses of Worship.
SYSTEM COMPONENTS:
4x SC8 (cardio or omnidirectional mode)
1x LINUS RACK20
| Type: | Sensor controlled Cardio / Omni subwoofer |
|---|---|
| Application: | High output subwoofer |
| Frequency response: | 20 Hz (-6 dB), 25 Hz (-3 dB) to 150 Hz |
| Power handling (AES / peak): | 6000 W / 24000 W |
| Sensitivity 1 W / 1 m:* | 106 dB @ 50 Hz |
| Maximum output peak:** | 150 dB |
| Components: | 4 x 18″ neodymium ultra low distortion woofers 4″ (101.6 mm) voice coil, 1500 W (AES) each |
| Front: | 2 x 18″ |
| Rear: | 2 x 18″ |
| Nominal impedance: | Front 4 Ohm, +1 / -1 |
| Rear: 4 Ohm, +2 / -2 | |
| Input connectors: | 2 x NeutrikTM NL4MP |
| Velocity sensors output: | 1 x NeutrikTM NC5FDL1 |
| Suspension: | optional (compatible to AIRLINE LA12 Frame) |
| Enclosure material: | Baltic birch |
| Finish: | Textured black Paint |
| Dimensions: (W x H x D) | 1108 x 540 x 982 mm |
| Net weight SC8: | 122 kg |
| Net weight SC8F: | 135 kg |
* Half-space loading **Measured with pink noise 6 dB crest factor
This post is also available in:
English (Englisch)

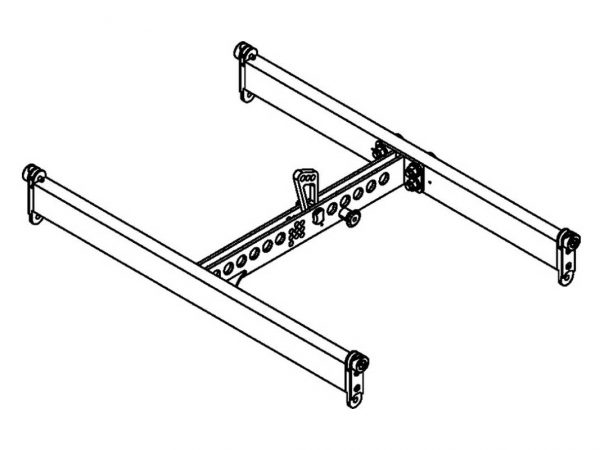

Compact frame for flying or ground stacking airline LA12 and/or SC8F in cardio mode
This post is also available in:
English (Englisch)

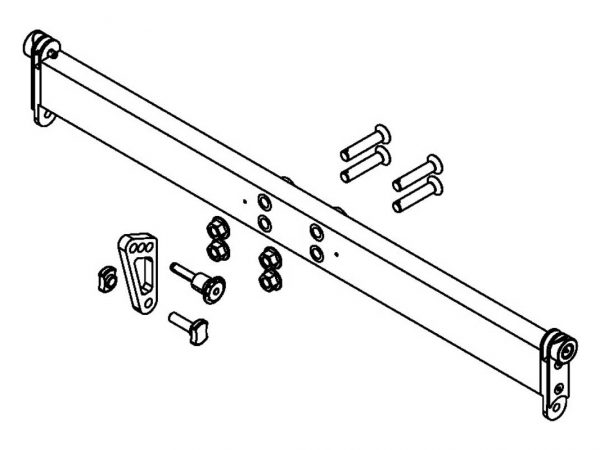

Upgrade kit FR120 to FR122
This post is also available in:
English (Englisch)

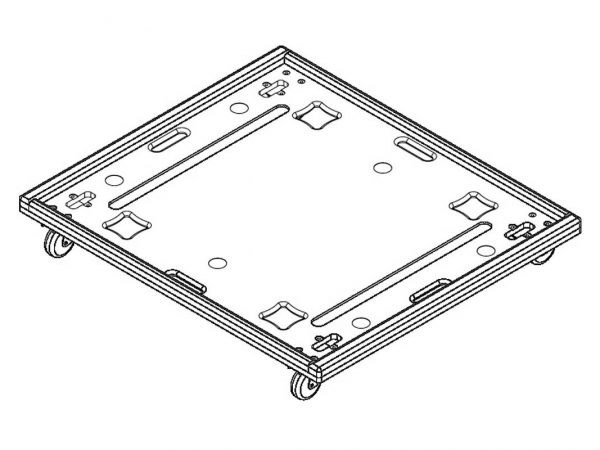

Transport dolly for up to 3 units SC8 / SC8F
This post is also available in:
English (Englisch)
Hybrid speaker and sensor system cable for SC Subwoofers, 20 m
This post is also available in:
English (Englisch)
4-pole loudspeaker cable, 4×4 mm, 1.5 m
1x nla4 speakon®
This post is also available in:
English (Englisch)

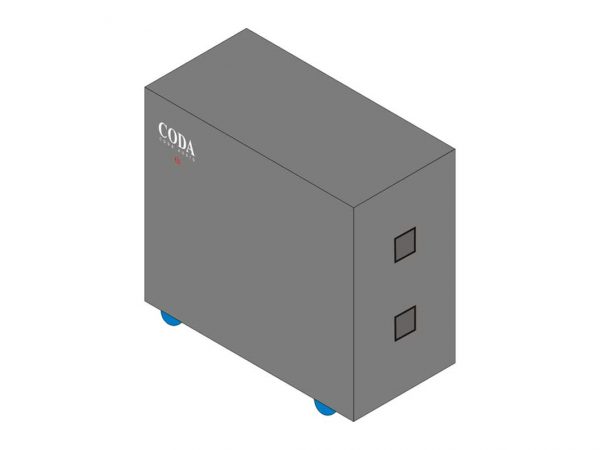

Protection cover for single SC8 / SC8F
This post is also available in:
English (Englisch)

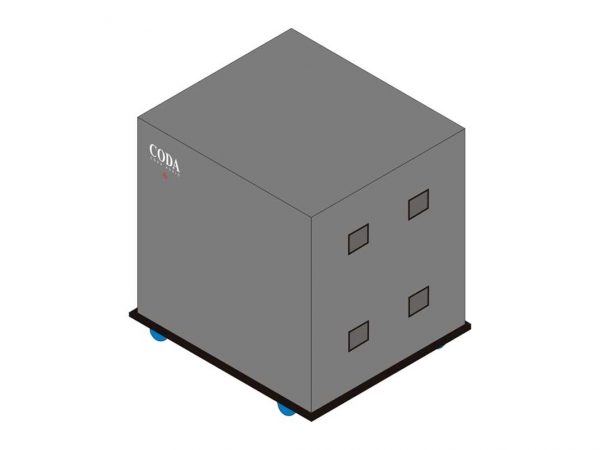

Protection cover for 2x SC8 / SC8F
