KTV Soundbar : Point Source.

Stereo Full Range System

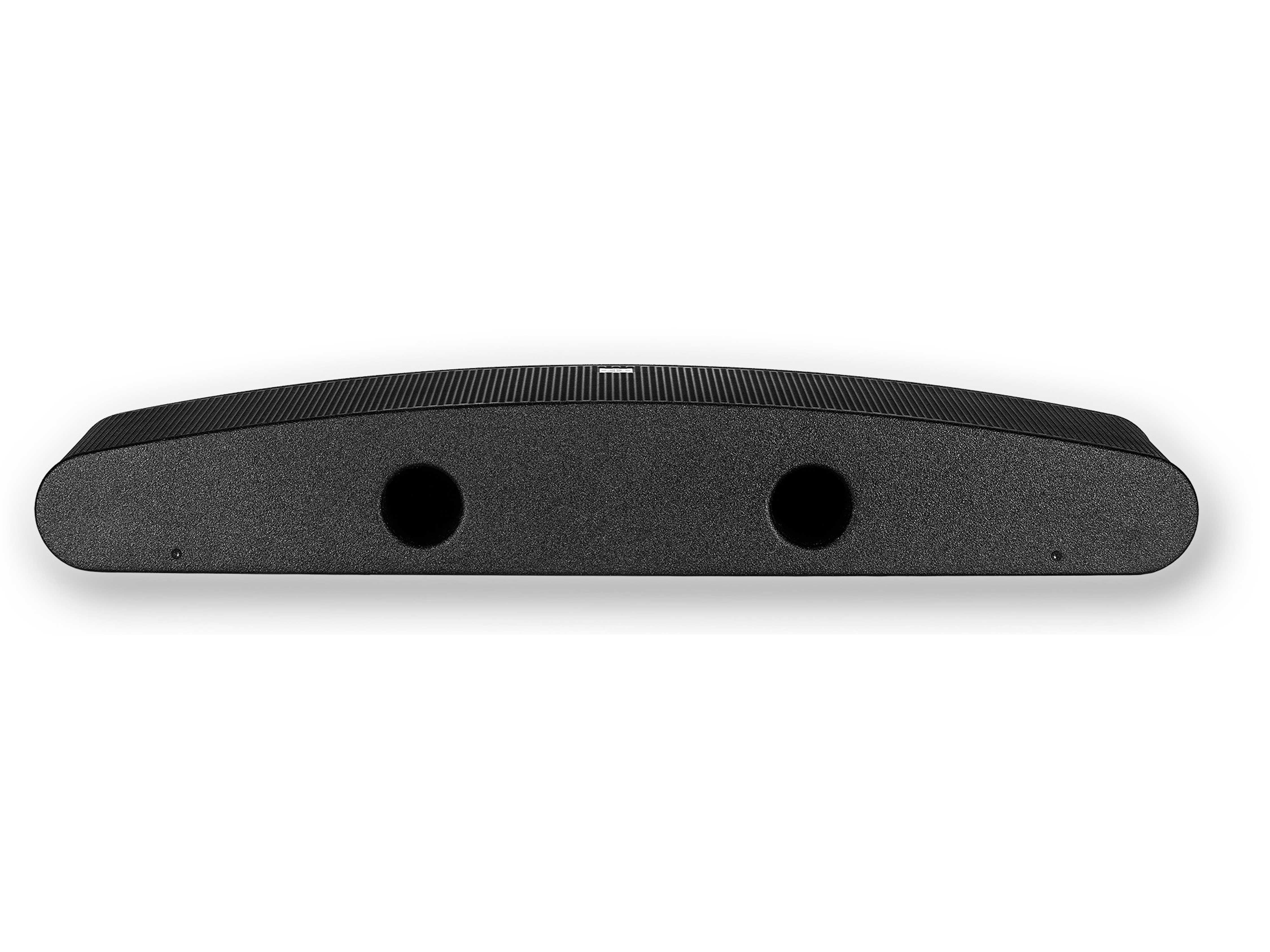

KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Size Comparison
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Photo
KTV Soundbar Size Comparison

3-way coherent point source technology. True full range performance. True coherency.

  • A complete, all-in-one 2.1 sound system designed without compromise to radiate a wide stereo image from a discreet, shallow box. The KTV Soundbar is a single unit, nearly 53" wide that can easily be mounted above or below the TV screen.


Main Features

  • Large stereo image from a single, shallow unit
  • True full range performance (35 Hz – 21 kHz)
  • Power handling: 1000 W (AES)
  • 3-way coherent point source technology
  • Double 8”/1.75” coaxial driver and 12” extremely high excursion cone driver
  • Wide coverage of 100°
  • Superior sound quality
  • Optimised for near-field applications
  • High output before feedback
  • Integrated M6 fixing points
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

KTV Soundbar is a complete, all-in-one 2.1 sound system designed without compromise to radiate a wide stereo image from a discreet, shallow box. Unlike sound systems with multiple speakers, the KTV Soundbar is a single unit, nearly 53″ wide that can easily be mounted above or below the TV screen.

The cabinet contains an extremely long excursion 12” ultra low distortion cone driver covering the range 35 Hz – 200 Hz. The 3” voice coil is 32 mm high, ensuring linear excursion of 22 mm / pp at consistent magnetic force. Three aluminum shorting rings reduce inter-modulation distortion; minimising induction variation whilst reducing thermal compression. This design reduces dramatically the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality providing deep and punchy bass.

Double 8”/1.75” coaxial drivers are employed for the left and right channels. The 8” cone midranges cover the 200 – 1800 Hz range with high efficiency and smooth, linear response. The high frequency drivers contain an ultra light 1.75” annular diaphragm providing exceptional transient response with very high efficiency from 1.6 kHz to 20 kHz. This high performance transducer was engineered to radiate a single source, coherent 100° wave front for superior dispersion control and high fidelity sound.

Specification

Type Stereo 3-way Full Range System
Application Single unit 2.1 KTV Sound System with extended low range
Frequency response 35 Hz – 21 kHz (-6 dB)
Power handling AES / peak (passive) N/A
Low AES / peak: 1000 W / 4000 W
Mid / High AES / peak: 2 x 200 W / 2 x 800 W
Max. peak SPL (with LINUS10)* 133 dB
Dispersion 100° conical
Components
Low frequency 12″ woofer, 1000 W (AES)
Mid/High frequency 2x 8″/1.75″ coaxial drivers, Mid: 2″ (51 mm),
High 1.75″ (44.4 mm) voice coil, 200 W + 80 W (AES)
Crossover 200 Hz active, 1.7 kHz passive
Input connectors Neutrik™ NLT8MP-BAG
Nominal impedance
Low 4 Ω (1+/1-)
Mid / high – left 4 Ω (2+/2-)
Mid / high – right 4 Ω (3+/3-)
Suspension M6 threaded points
Enclosure Material Birch plywood
Finish Polyurea black coating
IP rating (IEC 60529): IP03
Weather protection options: Standard IP55: IP55 (direct cable)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD) 1329 x 342 x 200 mm (52.32 x 13.46 x 7.87″)
Net weight 30 kg / 66.14 lbs

* Measured with pink noise 6 dB crest factor.

Accessories

  • KTV-WM

    This post is also available in: Deutsch (German)

    Wall mount bracket set for KTV SOUNDBAR

  • KTV-WM2

    This post is also available in: Deutsch (German)

    Tiltable wall mount bracket set for KTV SOUNDBAR

Downloads

FileAction
KTV Soundbar Data Sheet (English)Download
KTV Soundbar Datenblatt (Deutsch)Download
KTV CAD Drawing 2DDownload
KTV CAD Drawing 3DDownload
KTV Soundbar Accessories - DrawingsDownload
CODA Audio Weather Protection Download
